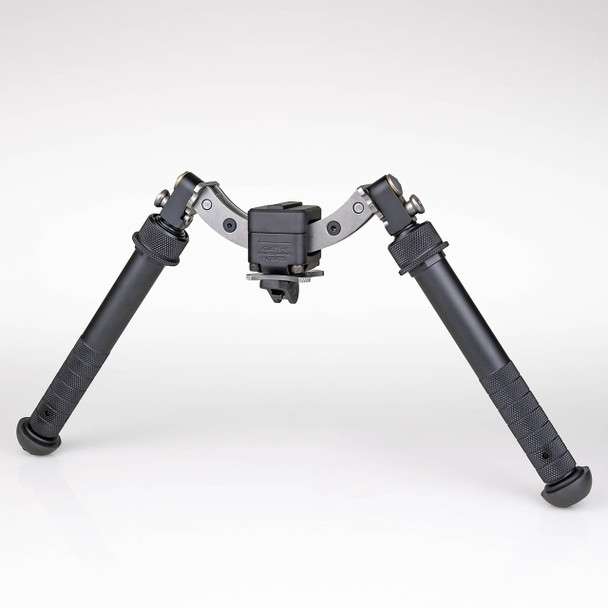

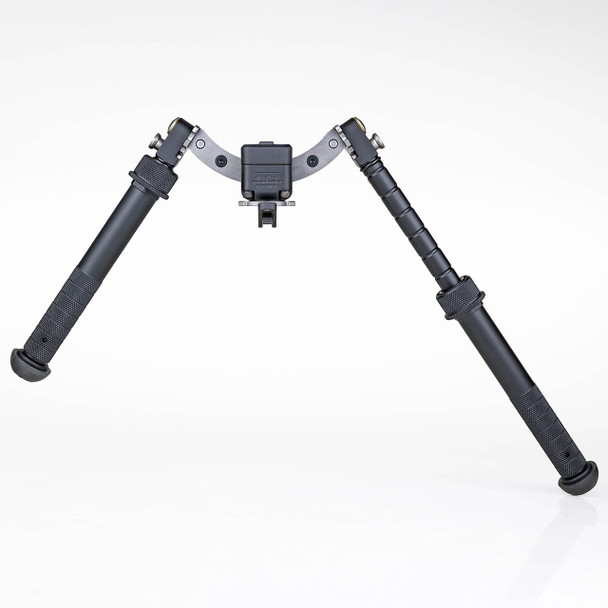

B&T Industries BT35-NC 5-H Atlas Bipod

Since B&T Industries introduced the Atlas Bipod in 2006, the shooting community found a usefulness in its patented, novel features. We began receiving requests for a “bigger,” “heavier,” “stouter” bipod with the same features.

The BT35-NC 5-H Atlas Bipod “No Clamp” has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires the 5-H-ADM Lever or will mount directly to our BT19 AI Spigot. *See below for other mount compatibility specifications.

It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.

• Height Range: 4.8 – 10″ (6.6” at 90°)
• Pan: 30 degrees
• Cant: 30 degrees
• Pan and Cant can be locked out at top dead center
• Pan and Cant Tension Wheel has Detent adjustability and Cam-Lock
• Position Button: 0.5″ diameter
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Weight: 25.74 ounces approx.
• Footprint: 14.5–19.5″

*If planning for installation of another mount, the 5-H would require Area 419’s ARCALOCK Spigot Extension for clearance of the cradle and operation of the clamp’s knob.
List of optional mounts and would require the Extension: Area 419’s ARCALOCK Clamp, Arisaka’s Picatinny Rail Slider or Really Right Stuff’s BTC-Pro Bipod Clamp

• More Information, Tutorial & Accessories
  • NC: No Clamp – Atlas 5-H Series Bipod Video Tutorial
  • Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
  • Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
  • Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the seven positions ¾” apart
  • Standard soft, durable rubber feet that are suitable for many surfaces included
  • Optional interchangeable Ski Feet and Raider Cleat easily swapped in the field with the press of a stainless steel plunger
  • Optional mounting systems available for Accuracy International and Sako rifles
