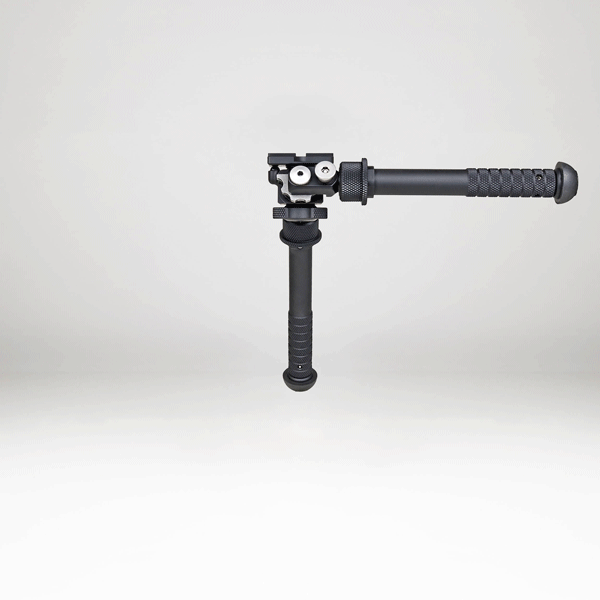

B&T Industries BT46-NC PSR Atlas Bipod

The BT46-NC PSR (Precision Sniper Rifle) Atlas Bipod “No Clamp” model has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires any 17S size lever style mount such as the ADM-170-S, ARMS 17S, LT271 or any ARCA dovetail mount with the same hole pattern. *See below for mount compatibility specifications.

The BT46-NC will also mount directly to our BT19 AI Spigot or BT70 M-LOK® Adapter.

It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.

The PSR series of Atlas Bipods were developed for the SOCOM PSR (Precision Sniper Rifle) Weapons System (BT46-LW17 was selected for SOCOM PSR).

• Height Range: 5 – 9.4″ (6.5” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button: 0.5″ diameter
• Fore and Aft pivot limiting Bosses
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 11.42 ounces approx.
• Footprint: 8–11″


• More Information & Accessories
  • NC: No Clamp – Atlas PSR Series Bipod Video Tutorial
  • UHMW components used for smooth tracking
  • Preload on Pan and Cant can be tightened by means of the knurled knob
  • Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
  • Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
  • Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
  • Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
  • Standard soft, durable rubber feet that are suitable for many surfaces included
  • Optional 3” Leg Extensions to increase height
  • Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
  • Optional mounting systems available for Accuracy International and Sako rifles
