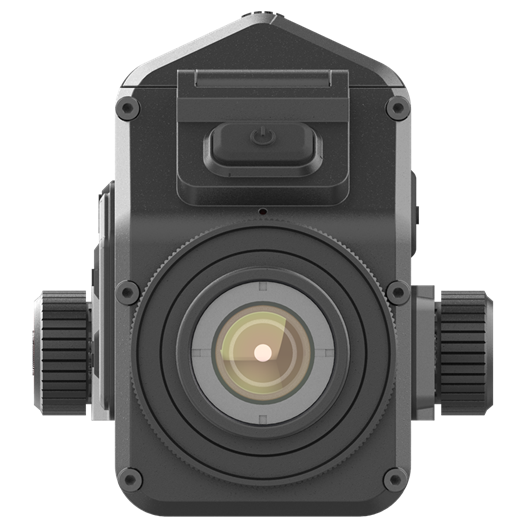

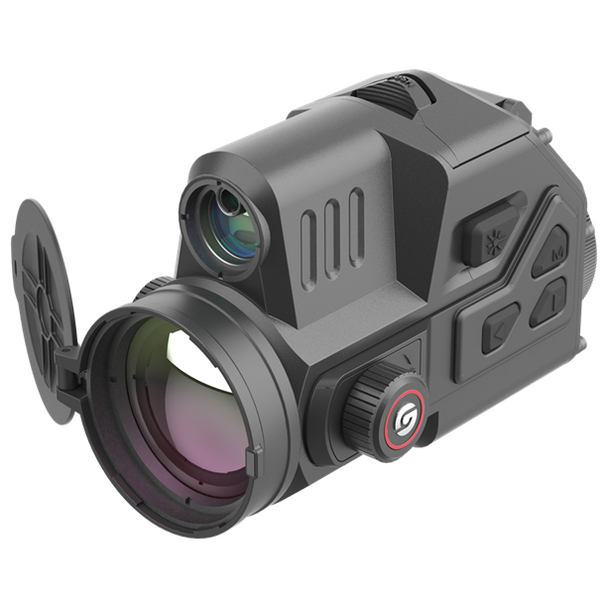

Guide Sensmart TB650LP Thermal Imaging Attachment

(No reviews yet) Write a Review
SKU:
ISS22302
UPC:
6970883551675
MPN:
TB650LP
  • Guide Sensmart TB650LP Thermal Imaging Attachment
  • Guide Sensmart TB650LP Thermal Imaging Attachment
  • Guide Sensmart TB650LP Thermal Imaging Attachment
  • Guide Sensmart TB650LP Thermal Imaging Attachment
  • Guide Sensmart TB650LP Thermal Imaging Attachment
  • Guide Sensmart TB650LP Thermal Imaging Attachment
Our Price: $4,149.00
Frequently bought together:

Description

After an in-depth hardware upgrade and software optimization, the TB LRF Pro Series combines precision and portability. Its appearance remains light without reducing professionalism at all: built-in laser rangefinder can reach an ultra-long distance of up to 1,000 meters; two batteries empower a longer operating time; full HD AMOLED display brings a rich and detailed visual experience; it also supports intelligent functions such as image tracing, automatic recording after each shot, etc.

  • NETD: 20mK
  • Display: 1920x1080
  • Laser rangefinder: 1000m
  • Encapsulation: IP68

Features

  • 12um infrared detector
    TB LRF Pro Series adapts the high-sensitive 12um infrared detector with NETD down to 20mK. The advanced detector can distinguish the slightest differences and changes in temperature.

  • FuII-HD 1920x1080 AMOLED display
    TB LRF Pro Series is equipped with a 0.39" AMOLED 1920x1080 display screen, presenting a vivid image with more details for users.

  • 1000m laser rangefinder
    The built-in LRF module provides a long laser rangefinder up to 1000m, enabling users to detect and locate the targets quickly and precisely.

  • IP68 dustproot & waterproof
    Compact and rugged, portable and powerful, the TB LRF Pro Series shares the high protective features of lP68, to support your outdoor adventures in the harsh environment.



MPN TB650LP
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Objective lens 50mm, F1.0
Field of view 8.8°×7.0°
FOV m@100m 15×12
Magnification 1x
Detection range 2600m/2800yd
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm; Zoom: 6.8x
Laser rangefinder 1000m/1090yd
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Bluetooth
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Battery type 2 replaceable 18650 batteries
Operating time 9 hours
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 1000G at 1ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP68
Weight (g/oz) 582/20.53
Size (mm/in) 161×89×97/6.34×3.50×3.82
Standard A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional 18650 battery, Bluetooth remote control, Cover ring adapter
