Hawke

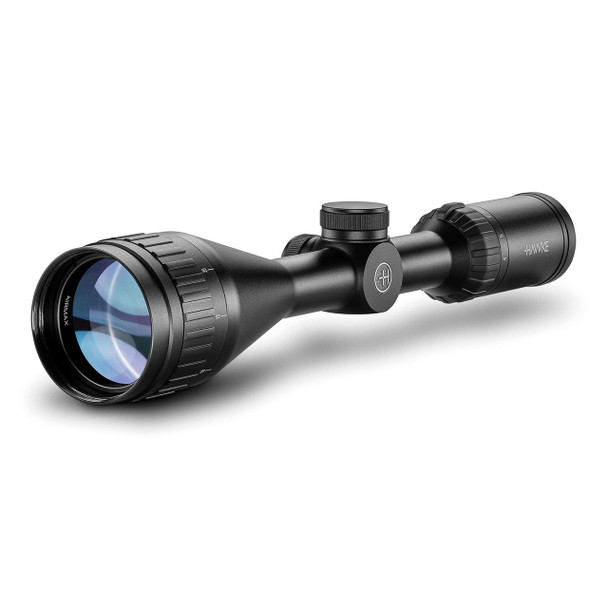

Hawke Airmax 4-12x50 SFP Riflescope: 1" Tube, AMX Reticle, Model 13140

(No reviews yet) Write a Review
SKU:
16594
UPC:
5054492131402
MPN:
13140
  • Hawke Airmax 4-12x50 SFP Riflescope: 1" Tube, AMX Reticle, Model 13140
  • Hawke Airmax 4-12x50 SFP Riflescope: 1" Tube, AMX Reticle, Model 13140
  • Hawke Airmax 4-12x50 SFP Riflescope: 1" Tube, AMX Reticle, Model 13140
  • Hawke Airmax 4-12x50 SFP Riflescope: 1" Tube, AMX Reticle, Model 13140
  • Hawke Airmax 4-12x50 SFP Riflescope: 1" Tube, AMX Reticle, Model 13140
Our Price: $319.00
Frequently bought together:

Description

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

Features

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Wide Angle
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns
  • Nitrogen purged. Shockproof. Waterproof. Fog proof.
  • All calibre rated.
  • Hawke No-Fault Lifetime Warranty.

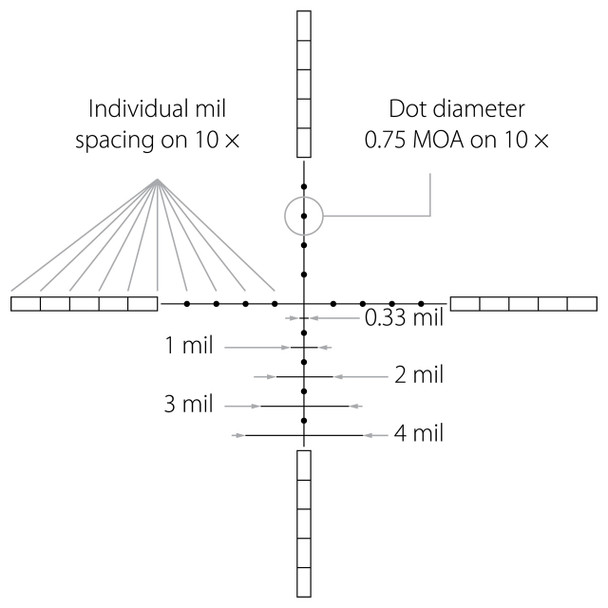

Reticle

  • AMX Reticle
    Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

    Half Mil Dot spacing on the lower post provides increased aim points for long shots.

    The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.



Line Drawing



MPN 13140
Scope Tube 1 Inch
Optical System System H2
Magnification 4 - 12x
Objective Lens 50mm
Reticle AMX
Parallax Adjustable Objective
Focal Plane SFP (Second Focal Plane)
Field of View 29.9 - 11ft @100yds | 10 - 3.7m @100m
Field of View (°) 5.7 - 2.1
Eye Relief 3.5in | 90mm
PX/Focus 10yds - ∞ | 9m - ∞
Exit Pupil 0.49 - 0.17″ | 12.5 - 4.2mm
Click Value 1 ⁄ 4 MOA
Elevation Turret Clicks (max) 70 MOA
Windage Turret Clicks (max) 70 MOA
Ocular Type Fast Focus
Power Selector Rubber Coated Posi-Grip
Lens Coating Fully Multi-Coated - 16 Layers
Length 13in | 329mm
Weight 21.9oz | 620g
Turret Type (Elevation) Capped. Low-Profile. Resettable
Turret Type (Windage) Capped. Low-Profile. Resettable
View AllClose

Additional Information

Product:
Riflescope
Series:
Airmax
Magnification:
4 - 12x
Objective Lens Diameter:
50 mm
Tube Diameter:
1 in
Focal Plane:
SFP
View AllClose
