KIDD 10/22 Black 762 Charging Assembly: Black

Upgrade your 10/22® with an enhanced bolt handle assembly designed for smoother operation, customizable performance, and a noticeably more comfortable rack. This kit delivers a super-slick guide rod, interchangeable tuning springs, and an extended, cushioned bolt handle for a confident, ergonomic grip every time.

Why this handle

• Anodized aluminum-lightweight build (0.4 oz)
• Eye-catching design- increased grip
• Black Bead-Blasted finish

Key Features

• Slick Guide Rod: Engineered for effortless racking and consistent cycling.
• Interchangeable Tuning Springs:
• White: Standard
• Red: 10% increased tension
• Green: 10% decreased tension
• Extended Handle: 1 3/4" length (1/4" longer than factory) for improved knuckle clearance.

This upgrade gives shooters full control over recoil tuning without resorting to permanent spring modifications. Choose the spring that best matches your ammunition and cycling preferences—perfect for overcoming tolerance stacking or fine-tuning your rifle’s timing.

The precision-ground guide rod is built from hardened tool steel and finished to a tight 0.0002" tolerance along its entire length. A nitride treatment boosts surface hardness to 70C Rockwell, creating one of the smoothest, toughest guide rods available.

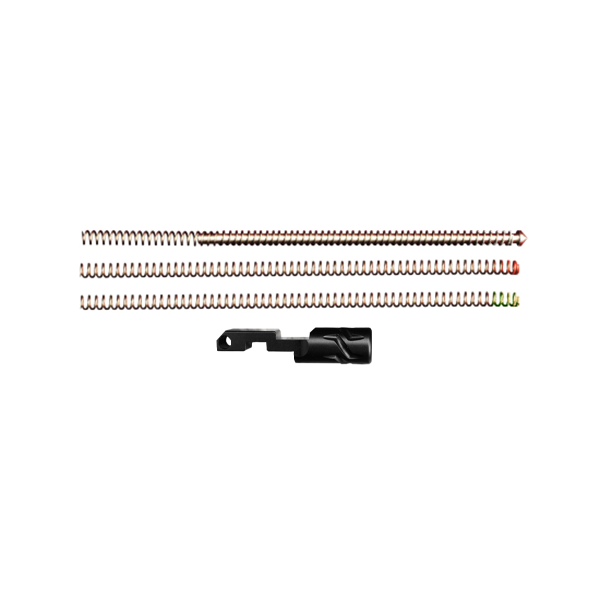

Package Includes:

• Bolt handle
• Guide rod
• Three tuning springs

Installation Overview:

• Remove the stock, then the trigger, bolt stop, bolt, and old charging assembly to create clearance. Select your spring, install it over the rod then slip on the handle- insert the bolt handle assembly through the ejection port, seating the cone end of the rod into the blind hole in the receiver. Compress the assembly, position the bolt onto it, then release to allow forward movement. Reinstall the bolt stop pin (or your upgraded buffer), trigger, and stock. The video in the first position of the pictures on this page provides additional step-by-step guidance.
