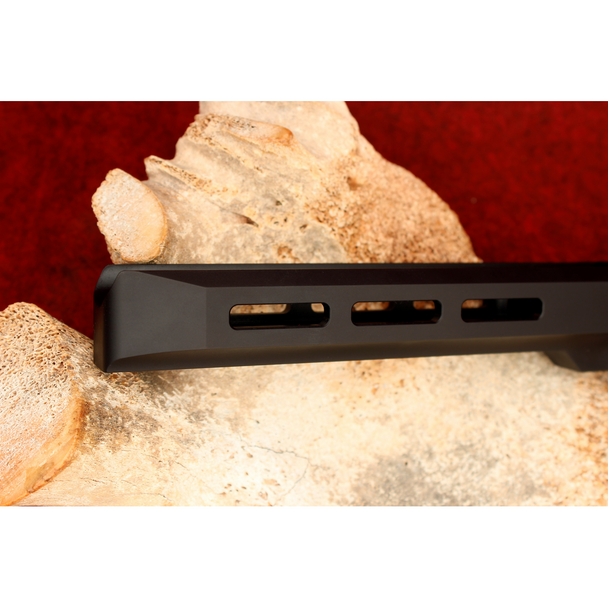

KIDD Tactical Chassis, Black: 8" Forend

KIDD Tactical Chassis — an adaptable, ultra-rigid foundation built for precision 10/22® performance.

What makes it special

• CNC-milled 6061-T6 billet aluminum with a durable anodized finish
• Accepts AR-15–style grips, stocks, tubes, and accessories
• Designed for both KIDD Rear Tang and non-tang receivers (stabilizer screw included)
• Integrated access for Supergrade barrel locking screw—swap barrels without removing your action
• Full bull barrel channel and clean, finished grip-to-trigger-guard transition

Key specs

• Weight: 17.4 oz (1.09 lbs)
• Overall length: 16.87"
• Forend length: 8"

Machined from 6061-T6 billet aluminum

• Durable black anodizing
• M-LOK® slots for accessory mounting

Compatible with:

• o KIDD Supergrade and KIDD Classic barreled actions
• o Most 10/22®-pattern actions
• o Most AR-15 furniture (stocks, grips, tubes, rails, bipods)
• Includes Stabilizer Screw for non–rear tang receivers
• Optional buttstock, tube, grip, and ring attachments available

Chassis weight

• Total weight: 1.09 lbs (17.4 oz)
• Avoiding chassis flex — our engineering
  This chassis begins as a billet aluminum block and is precision-machined down to just 17.4 oz, leaving a dense, rigid structure that resists torsion and improves shot-to-shot consistency. The integrated Supergrade barrel screw access port allows users to re-tension or replace barrels without disturbing their action bedding. When using a non-tang receiver, the included stabilizer screw applies controlled upward tension—10 in-lb is all that’s needed—to lock the action in place without inducing forward stress. For shooters running a KIDD Rear Tang, the design fully supports the tang system and bypasses the stabilizer screw entirely.

Installation & break-in tips

• When using a non-tang receiver, install the tang filler first, then tighten the stabilizer screw hand-tight (about 10 in-lb)
• Do not over-torque the stabilizer screw; pushing the action forward will degrade accuracy
• If using a KIDD receiver with Rear Tang, skip the stabilizer screw entirely
• Test-fit your chosen AR-15 grip to ensure ideal clearance around the trigger guard
• Recheck all accessory torques after your first range session
