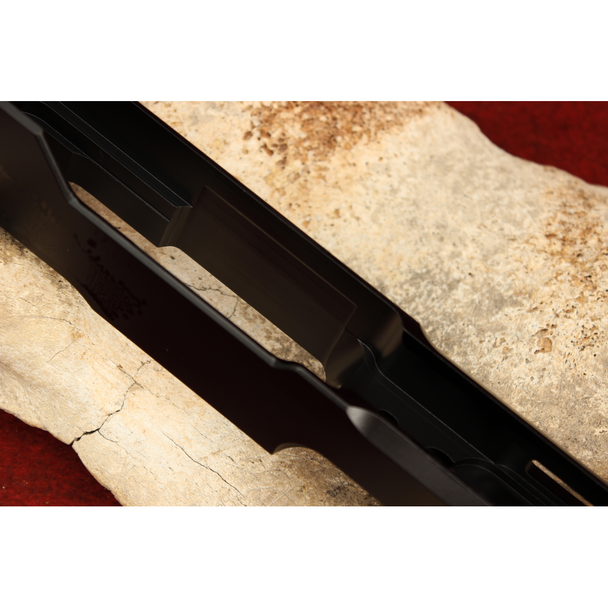

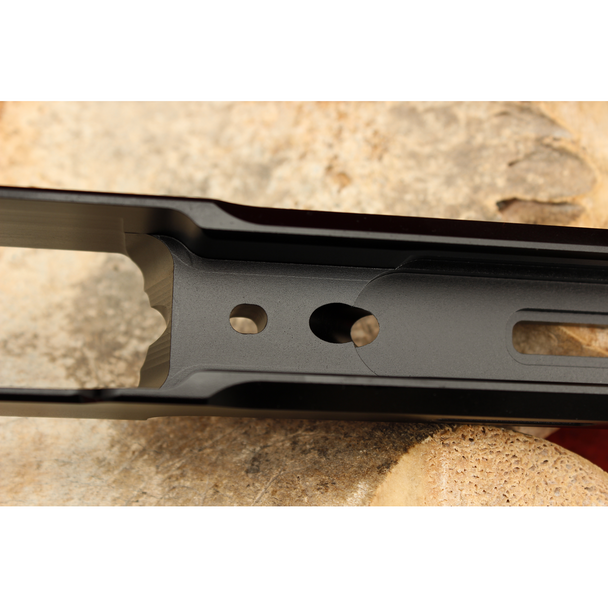

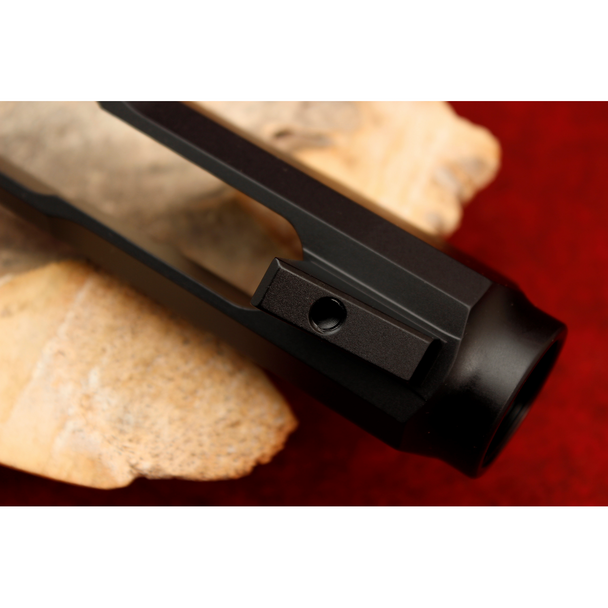

KIDD Tactical Chassis Short, Black: 4.75" Forend

KIDD Tactical Chassis — a compact, ultra-rigid modular foundation for precision 10/22® builds.

What makes it special

• CNC-milled 6061-T6 billet aluminum with a durable anodized finish
• Accepts KIDD Rear Tang or non-tang receivers (stabilizer screw included)
• Full bull barrel channel
• Optional grip attachments for a clean, finished fit
• Compatible with most AR-15 accessories

Key specs

• Weight: 14.7 oz
• Overall length: 13.625"
• Forend length: 4 3/4"
• Material: 6061-T6 aluminum, anodized black
• M-LOK® slots for accessory mounting
• Takes KIDD Supergrade, KIDD Classic, and other 10/22®-pattern actions

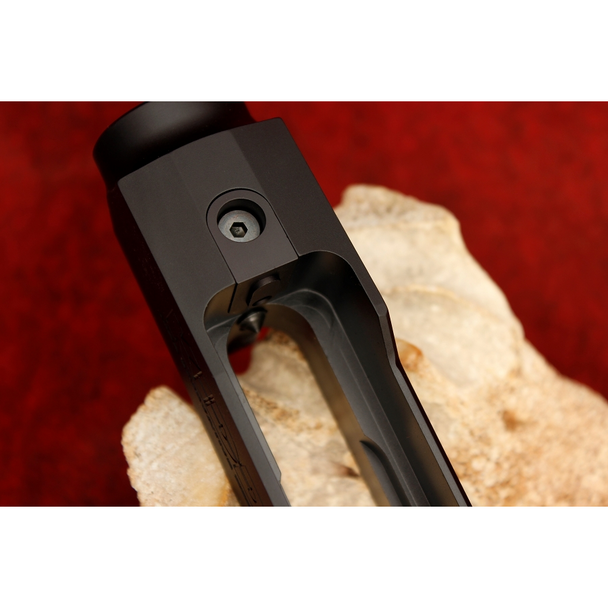

• Built-in access for Supergrade barrel locking screw
• Includes Stabilizer Screw for actions without a rear tang

Chassis weight

• Total weight: 14.7 oz
• Avoiding chassis flex — our engineering
  Starting as a solid billet block, this chassis is precision-machined into a lightweight but rigid 14.7-ounce structure that resists torsion and supports consistent accuracy. The built-in access port for the Supergrade barrel locking screw allows barrel swaps or tension adjustments without removing the action—preserving bedding and maintaining zero. For non-tang receivers, the included stabilizer screw uses minimal upward tension (about 10 in-lb) to secure the action without inducing forward pressure. Shooters using a KIDD Rear Tang benefit from full tang support without needing the stabilizer screw.

Installation & break-in tips

• Install the tang filler for non-tang receivers before dropping the action into the chassis
• Tighten the stabilizer screw hand-tight only—approximately 10 in-lb
• Do not over-torque, as excess pressure will push the action forward
• If using a KIDD receiver with Rear Tang, skip the stabilizer screw entirely
• Confirm ideal fit with your chosen AR-15 grip and accessories
• Recheck accessory torques after your first shooting session
