Aimpoint

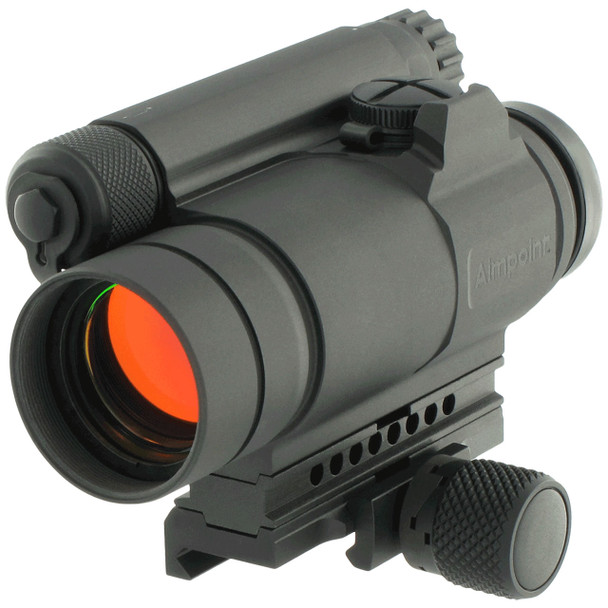

Aimpoint CompM4 Reflex Optic

(No reviews yet) Write a Review
  • Aimpoint CompM4 Reflex Optic
  • Aimpoint CompM4 Reflex Optic
Our Price: $799.00 - $1,145.00

Description

The Aimpoint® CompM4 sight, with high battery compartment, belongs to the CompM4 series of sights which are the finest sights Aimpoint has ever produced. Improvements include advanced energy efficiency that provides up to 8 years of continuous use from a single AA battery!

The first Aimpoint Comp sight came out in 1995 and today there are more than 1 million sights from the Comp series in use worldwide. All Comp sights are soldier-tested and combat-proven, in other words they are extremely robust high quality products.

The Aimpoint® CompM4 series of sights are the toughest sights that Aimpoint has ever produced and they are the standard infantry soldier sight in many NATO countries. These optics are extremely rugged and operate continuously for up to 8 years using a single AA battery. The competition is not even close.

The CompM4 has a top-mounted battery compartment.

Complete and ready to mount
The standard configuration of the CompM4 series of sights contains the sight, a QRP2 mount and a standard AR15 spacer. These sights also come equipped with a killFlash® anti-reflection device and bikini rubber lens covers.

Customize your sight
CompM4 sights can be customized according to your preferences and needs. Both the standard mount and spacer can be changed to meet the demands of your specific mission and equipment.

Launched 2007

Unique features

  • High battery compartment
  • Compatible with every generation of NVD
  • ACET technology allows up to 80 000 hours (over 8 years) of daytime operation on one AA battery
  • Internal voltage regulator allows the CompM4 to be used with any AA size battery
  • 7 NVD settings and 9 daylight settings
  • QRP2 mount has twice the clamping force of the original QRP, and the mounting knob is wider and shorter to improve operation and lower the risk of snagging on other gear
  • Mount base is keyed in to the body of the sight to absorb recoil
  • Mount base screws directly in to the sight – no separate sight ring required.
  • 500 000 hours of use on NVD settings
  • 2 MOA dot for close combat and long distance engagement
  • Matches perfectly with Aimpoint® 3XMag-1
  • Excellent light transmission
  • Front lens opening is threaded for addition of killFlash® anti-reflective device
  • Submersible to 150 feet (45 meters)
  • Vertical spacer included
  • Improved adjustment caps are easier to remove and protected against impact
  • Can be used with a carry handle adapter for use on all M16 rifles
  • Mechanical switch for speed and reliability



SKU 13397 14518
MPN 11972 12309
Variant 2 MOA Red Dot - QRP2 Mount w/ AR-15 Spacer 2 MOA Red Dot - No Mount

Optical Specifications
Operating principle Reflex Collimator sight with LED Reflex Collimator sight with LED
Optical magnification 1x 1x
Aiming dot size 2 MOA 2 MOA
Dot intensity Visible against a background luminance of 0.1 to 55 000 lx Visible against a background luminance of 0.1 to 55 000 lx
Optical signature No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD
Dot color Peak Wavelength: 655 ± 15 nm Peak Wavelength: 655 ± 15 nm
NVD compatible Yes Yes
Optical coating Anti-reflex, all surfaces and high transmission. NVD-Compatible. Anti-reflex, all surfaces and high transmission. NVD-Compatible.
Clear aperture 23 mm (.9 in) 23 mm (.9 in)
Eye relief Unlimited Unlimited

Power Source
Battery type AA size battery, (rechargeable 1.2 V), alkaline/lithium 1.5 V or lithium 3-3.7 V (acceptable voltage 1.2-5 V) AA size battery, (rechargeable 1.2 V), alkaline/lithium 1.5 V or lithium 3-3.7 V (acceptable voltage 1.2-5 V)
Battery life - Day time use 80 000 h continuous (pos. 12 of 16). Responds to >500 000 hours at NVD setting (pos. 4) 80 000 h continuous (pos. 12 of 16). Responds to >500 000 hours at NVD setting (pos. 4)
Power intensity 7 NVD and 9 Daylight, of which 1 extra bright 7 NVD and 9 Daylight, of which 1 extra bright

Physical Specifications
Length sight only 120 mm (4.7 in) 120 mm (4.7 in)
Length conf 135 mm (5.3 in) -
Width sight only 72 mm (2.8 in) 72 mm (2.8 in)
Height sight only 60 mm (2.4 in) 60 mm (2.4 in)
Height conf 72 mm (2.8 in) -
Weight sight only (incl battery) 268 g (9.4 oz) 268 g (9.4 oz)
Weight conf 376 g (13.3 oz) incl. Lens Covers, Kill-Flash, Mount, and Spacer -
Housing material High strength aluminum High strength aluminum
Housing finish and color Matte black Matte black
Housing anodized Yes Yes
Material mount and spacer std conf Aluminum -
Material lens cover Synthetic rubber -
Surface treatment Hard anodized, matte Hard anodized, matte
Height of optical axis - sight and mount 30 mm (1.2 in) over top surface of Picatinny/Weaver Rail -
Height of optical axis - sight, mount and low spacer 39 mm (1.5 in ) over top surface of Picatinny/Weaver Rail -
Adjustment Range ±2 m at 100 meters (±2 yds at 100 yds) in windage and elevation, 1 click = 16 mm at 100 meters = 13 mm at 80 meters = .6 in at 80 yds Range ±2 m at 100 meters (±2 yds at 100 yds) in windage and elevation, 1 click = 16 mm at 100 meters = 13 mm at 80 meters = .6 in at 80 yds

Environmental Specifications
Temperature range operation -45°C to +71°C (-49°F to +160°F) -45°C to +71°C (-49°F to +160°F)
Temperature range storage -51°C to +71°C (-60°F to +160°F) -51°C to +71°C (-60°F to +160°F)
Temperature shock Operable after a temperature shock between -45°C and +71°C (-49°F and +160°F) Operable after a temperature shock between -45°C and +71°C (-49°F and +160°F)
Humidity Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Submersible To a depth of 45 m (150 ft.) To a depth of 45 m (150 ft.)
Shock Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction). Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction).
Vibration Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction. Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Chemical resistance Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents. Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents.

Mechanical Interface
Keyed surface mount 25 25



View AllClose

Additional Information

Series:
CompM4
Magnification:
1x
