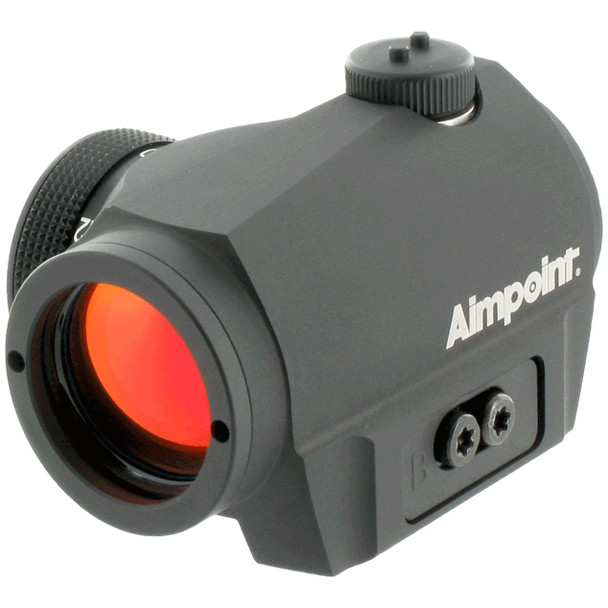

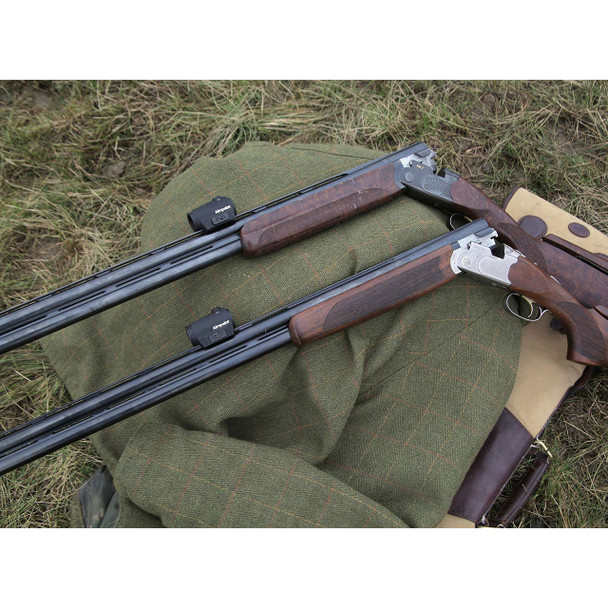

The Aimpoint® Micro S-1 was designed specifically for use on shotguns. The innovative carbon fiber reinforced mounting system positions the optic on the lowest possible optical axis - without adding unnecessary weight. The Micro S-1 sight attaches directly to the shotgun at any point along the ventilated rib, and interchangeable adapter plates are included to accommodate most popular shotgun rib sizes.
The Micro S-1 greatly enhances hit percentage for hunters, as well as on the sporting clays course. It provides a compact, low-profile optic for shotgun hunters. The big, bright 6 MOA red dot provides an optimal combination of target acquisition speed and visibility.
Launched 2017
Unique features
- Versatile optic for all shotgun applications
- Available in 6 MOA dot size
- Higher maximum light intensity settings for bright sky conditions
- Low integrated and carbon fiber reinforced rib mount
- Low optical axis
- Interchangeable base plates to accommodate most rib sizes (6-12mm)
- Lightweight, compact and fully enclosed protective housing
- Possibility of full zeroing to customize the point of impact
| General Specifications |
| SKU | 19548 |
| MPN | 200369 |
| Variant | 6 MOA Red Dot - Shotgun Rib Mount |
| | |
| Optical Specifications |
| Operating principle | Reflex collimator sight with LED |
| Optical magnification | 1x |
| Aiming dot size | 6 MOA |
| Dot intensity | Visible against a background luminance of 0.1 to 55 000 lx |
| Dot color | Peak Wavelength: 655 ± 15 nm |
| NVD compatible | No |
| Optical coating | Anti-reflex, all surfaces and multi-layer |
| Clear aperture | 18 mm (.71 in) |
| Eye relief | Unlimited |
| | |
| Power Source |
| Battery type | 3V Lithium battery, type CR2032 |
| Battery life - Day time use | 50 000 h (over 5 years of continuous use) |

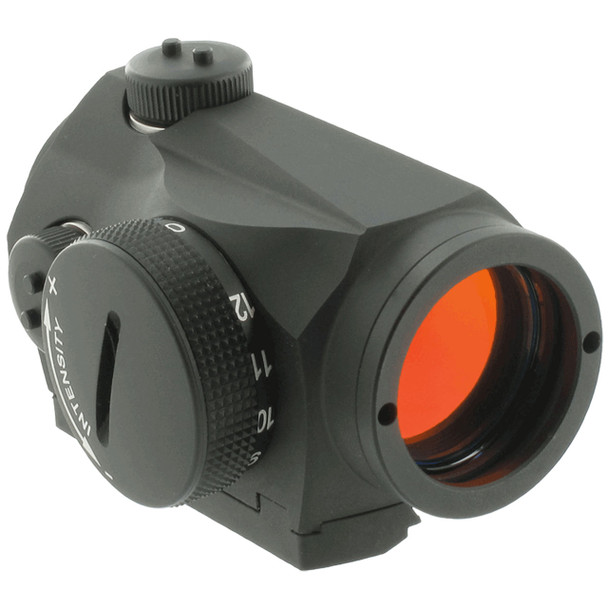

| Power intensity | 12 pos. 1 Off, 12 daylight of which 1 Extra Bright |
| | |
| Physical Specifications |
| Length sight only | 63 mm (2.5 in) |
| Width sight only | 43 mm (1.7 in) |
| Height sight only | 41 mm (1.6 in) |
| Weight sight only (incl battery) | Approx. 100 g (3.5 oz) |
| Housing material | Aluminium; integrated mount: Reinforced polymer |
| Housing finish and color | Semi-matte black |
| Housing anodized | Yes |
| Material mount and spacer std conf | Integrated mount: Reinforced polymer |
| Surface treatment | Anodized, semi-matte |
| Height of optical axis - sight and mount | 14 mm (.55 in) |
| Adjustment | Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = .44 in at 100 yds |
| | |
| Environmental Specifications |
| Temperature range operation | -30°C to +60°C (-20°F to +140°F) |
| Temperature range storage | -51°C to +71°C (-60°F to +160°F) |
| Temperature shock | Operable after a temperature shock between -30°C and +60°C (-22°F and +140°F) |
| Humidity | Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic |
| Submersible | To a depth of 5 m (15 ft.) |
| Shock | Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction). |
| Vibration | Withstands vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction. |
| Chemical resistance | Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents. |
| | |
| Mechanical Interface |
| Keyed surface mount | 25 |
