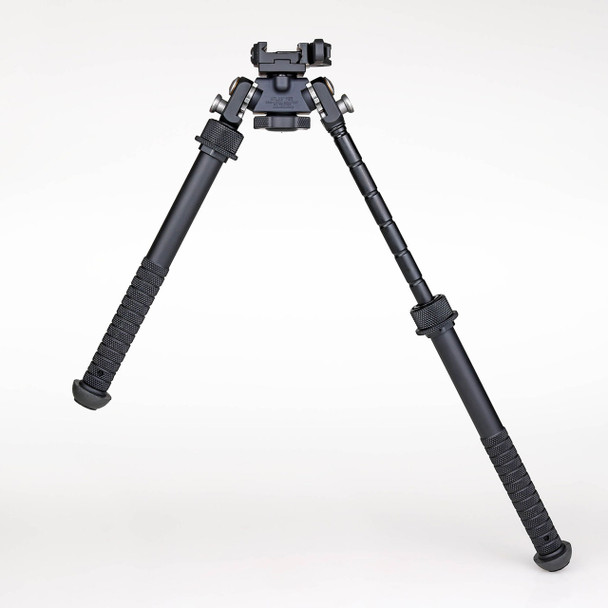

B&T Industries BT47-LW17 PSR Atlas Bipod

The BT47-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever.

It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only.

The PSR series of Atlas Bipods were developed for the SOCOM PSR (Precision Sniper Rifle) Weapons System (BT46-LW17 was selected for SOCOM PSR).

• Height Range: 6.4 – 12.8″ (8.5” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button: 0.5″ diameter
• Fore and Aft pivot limiting Bosses
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 15.13 ounces approx.
• Footprint: 10-14.5″


• ADM-170-S Lever Adjustment & Operation
  • Video: How to Adjust the ADM-170-S Quick Detach Lever on the Atlas Bipod
  • Download and Print Operating Instructions for the ADM-170-S


• More Information, Tutorial & Accessories
  • LW17: Lever Mount With ARMS 17S Mount – Atlas PSR Series Bipod Video Tutorial
  • UHMW components used for smooth tracking
  • Preload on Pan and Cant can be tightened by means of the knurled knob
  • Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
  • Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
  • Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
  • Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
  • Standard soft, durable rubber feet that are suitable for many surfaces included
  • Optional 3” Leg Extensions to increase height
  • Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
  • Optional mounting systems available for Accuracy International and Sako rifles
