ELCAN

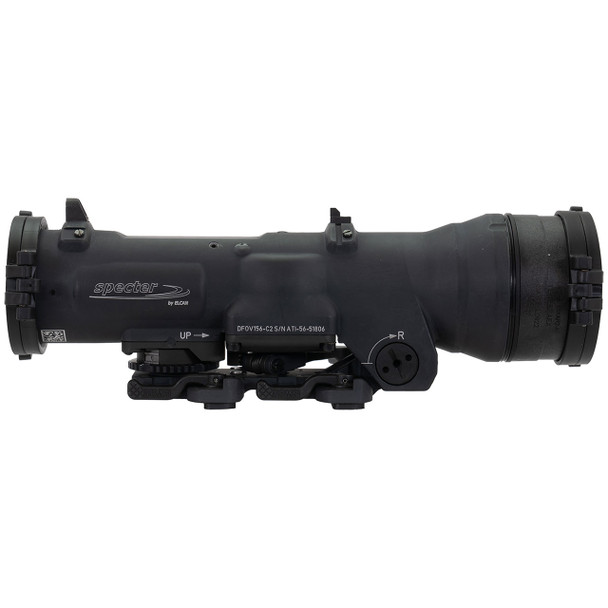

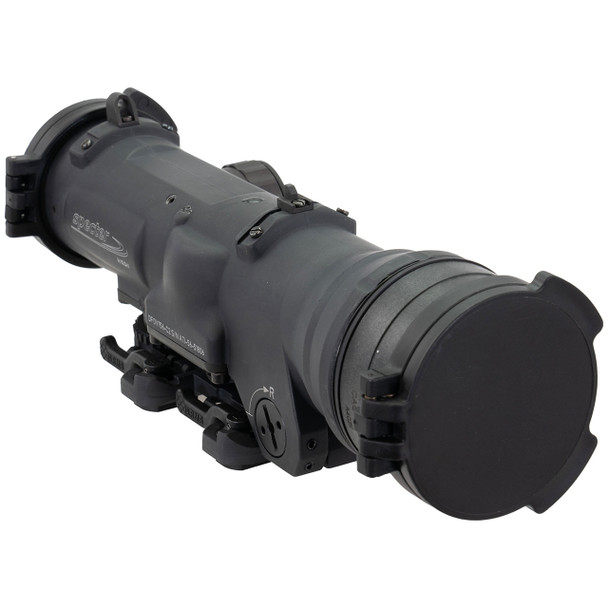

ELCAN SpecterDR 1.5x/6x Dual Role Optical Sight

(No reviews yet) Write a Review
  • Black
  • Black
  • Black

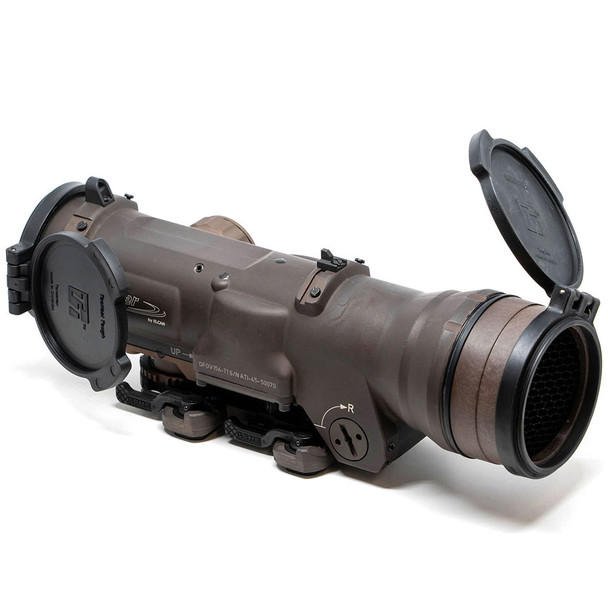

  • FDE
  • 7.62 (CX5456 Ballistic) Reticle
  • 5.56 (CX5455 Ballistic) Reticle
Our Price: $3,199.00 - $3,255.00

Description

The ELCAN SpecterDR 1.5x/6x is the second evolution in the family of Dual Role Optical Sights. Based upon the battle-proven SpecterDR design, the SpecterDR 1.5x/6x provides higher magnification to enable greater precision and longer engagement ranges, while at the same time providing exceptional field of view in CQB mode.

The SpecterDR 1.5x/6x enjoys ELCAN’s famous crystal-clear optics as well as a generous eye relief, making it the ideal instrument for designated marksman rifles and other long range applications. As with all SpecterDR sights, the magnification and field of view can be changed instantly with the throw of a lever. Depending upon the situation, the user may adjust the sight to illuminate the crosshair or just a brilliant red dot in the center. Because the reticles are etched in glass, they are plainly visible even in the case of loss of electrical power due to battery failure or EMP.

Optional Adjustable A.R.M.S. Levers
All SpecterDR 1x/4x Dual Role Optical Sights come equipped with standard integral A.R.M.S. but you can add Adjustable A.R.M.S. levers as an option. The New MK-II Lever® features a built-in precision adjustment wheel allowing finger tip (no tool) selection to desired tension to fit variations in 1913 Mil-Std Dimensions. The mounts adjustment wheel comes pre-gauged and locked to the center of the Mil-Std dovetail specs. The hash marks to the left or right of the adjustment wheels white marked indicator line, represent .002.



Magnification 6x / 1.5x
Length 183mm nominal
Width 75mm nominal
Height 73mm nominal
Weight 705g nominal
Reticle Dual-thickness ballistic crosshair with user-selectable red dot and VSOR rangefinder
Aiming Dot Diameter 1.5 MoA @ 6x, 6 MoA @ 1.5x
Ballistic Correction

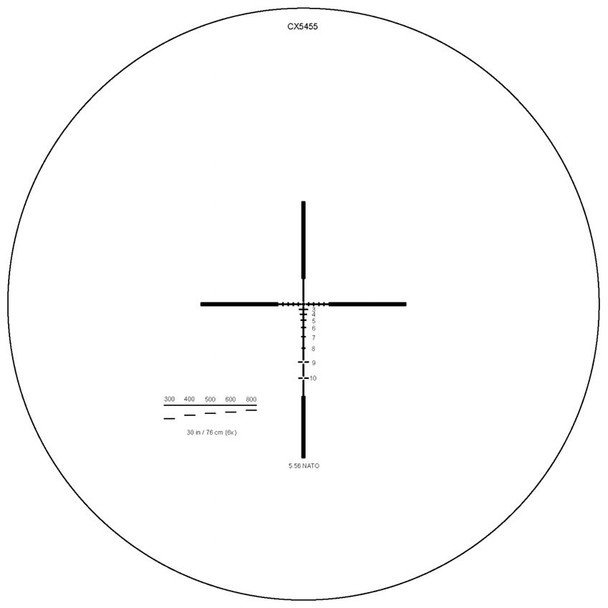

Reticle CX5455 Reticle: 100-1000m for 5.56 NATO

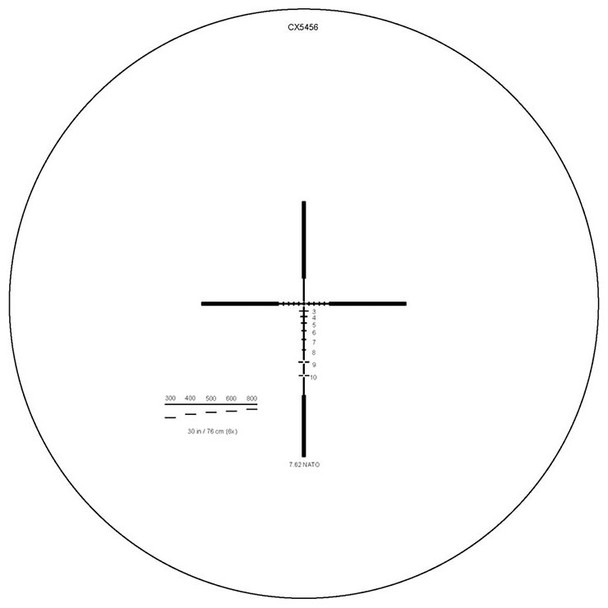

CX5456 Reticle: 100-1000m for 7.62 NATO
CQB Offset <44mm @ 60m
Field of View 16 deg @ 1.5x, 4 deg @ 6x
FoV @6x 7 m @ 100 m (21 ft @ 100 yds)
FoV @1.5x 28.7 m @ 100 m (86 ft @ 100 yds)
Illumination Source Battery-powered LED
Crosshair Illumination 5 settings, AN/PVS-22 night vision compatible
Red Dot Illumination 5 settings, AN/PVS-22 night vision compatible
Eye Relief 70mm
Entrance Pupil 42mm
Exit Pupil 7mm
Nominal Focus 300m @ 6x, 105m @ 1.5x
Fixed Focus Range 20m to infinity
Battery Type CR2032 (3v Lithium)
Battery Life 382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting
Exterior Finish Hard-anodized aluminum, gray/black color
Adjustment Resolution 0.5 minute of angle
Adjustment Range 120 minutes of angle
Base Requirement Mil-Std-1913 Picatinny Rail (Weaver compatible)
Attachment ARMS Levers
Shockproof 450 g's
