Description

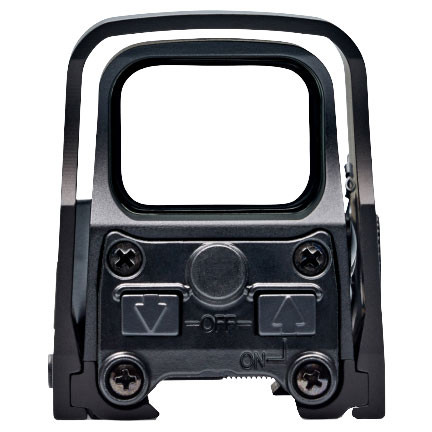

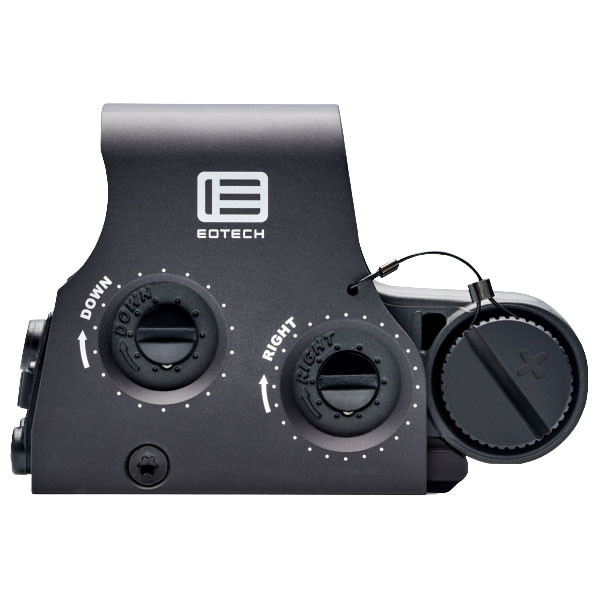

Operator Grade Holographic Weapon Sight
An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.
The HWS XPS2™ is the non night-vision version of our shortest and lightest HWS sight so far. The CR123 lithium battery configuration of the XPS2 provides additional rail space, leaving more room for rear iron sights or magnifiers. Also offering water-resistant capability up to 10 feet, the XPS2 is a great compact and lightweight option for your platform.
Reticle Options
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
- EOTECH One Dot Reticle
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0. - EOTECH Two Dot Reticle
Our two-dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2. - EOTECH 1-MOA Dot Only Reticle
Single 1-MOA dot reticle that can be zeroed at any distance.
Range Estimation with Unmagnified HWS
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
