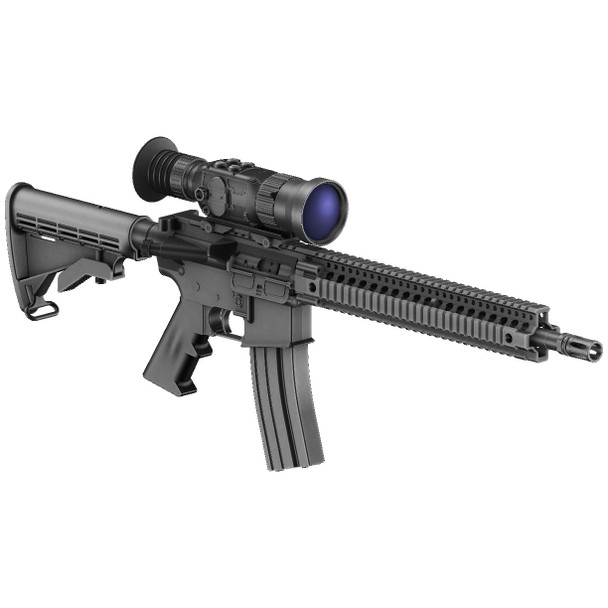

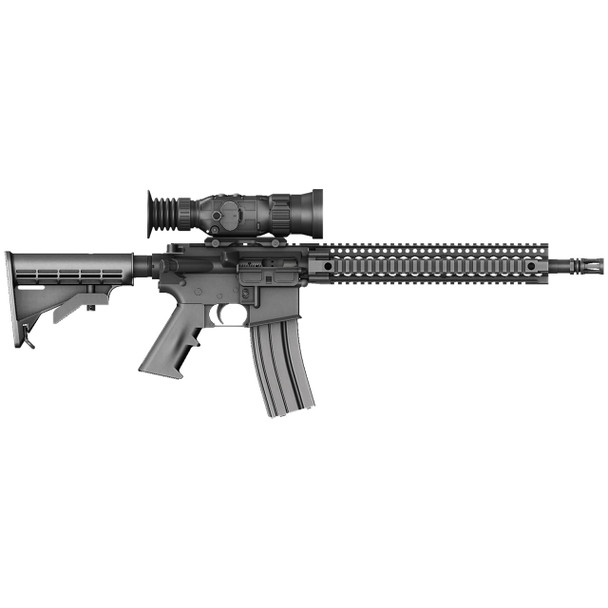

The TI-GEAR-S675 is the professional-grade thermal weapon sight for aiming and engagement on a wide variety of firearms at medium-to and long-range distances. Ideal for both small, large-size caliber rifles, machine guns, whether single or repetitive shooting. It is also a great tool for reconnaissance and tactical surveillance.
The latest generation silent and Auto-NUC sensor is at the base of the TI-GEAR-S675. GSCI proprietary hardware and software solutionsare built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.
The TI-GEAR-S675 is fully dust-and waterproof, meets and exceeds modern standards. The TI-GEAR-S675 is designed for bothprofessional users and also firearms enthusiasts. It is a robust, reliable tool for long-term, intensive use in any environment, in any lighting or weather conditions.
- What's In The Box
- Thermal Imaging Sight
- Long Eyerelief Rubber Eyecup (Attached)
- Front Lens Protective Cover (Attached)
- Dual Lever Adjustable Rifle Mount DLM (Picatinny, with fine-tune knobs for tolerance adjustments)
- Demist Shield
- USB Power Cable
- Video-Out Cable
- Soft Carrying Pouch
- User Manual
- Quick Reference Card
- 7-Year Warranty with Activation Form
- Waterproof Hard Carrying Case
- Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
| SKU |
ISS6031 |
| MPN |
TI-GEAR-S675 |
| Thermal Sensor Resolution |
640x480 |
| Lens Size |
75mm |
| Optical Magnification |
3x |
| Objective Lens System |
75mm |
| Field of View |
8.3°x6.2° |
| Focusing Range |
3m .. Infinity |
| Diopter Adjustment Range |
-6 .. +4 |
| Eye Relief |
Min. 50mm |
| FPA Type |
Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation) |
| FPA Resolution and Pitch |
640x480, 17μm |
| FPA Sensitivity (NETD) |
<50mK |
| FPA Refresh Rate |
50Hz |
| Digital Zoom |
1x, 2x, 4x, 8x |
| Internal Display |
Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600 |
| Imaging Modes |
Monochrome (White-Hot / Black-Hot) and Multiple Colour Palettes |
| Shot-Initiated FOV Feature (SIF) |
Built-In Adjustable Shock Sensor |
| Digital Passive Stadiametric Rangefinder (SRF) |
Yes |
| Digital Detail Enhancement Feature (DDE) |
Yes |
| Wide Dynamic Range Feature (WDR) |
Yes |
| Stow Safety Feature (SSF) |
Yes |
| Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) |
Optional: 3-Axis Sensors -Magnetometer, Accelerometer and Gyroscope |
| Integrated Compass |
Optional |
| Pitch / Roll / Azimuth Indications |
Optional |
| Real-Time Date-Time Stamp |
Yes: Simplified, Extended, DTG Formats |
| Digital Video Recorder with Real-Time Stamp |
Optional: Comes with removable 32GB microSD card |
| Electronic Reticles |
8+8 Patterns, Easy Zeroing / Calibration |
| Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m) |
2500m / 3380m |
| Hand-Held Configuration |
Yes |
| Conversion to Clip-On (In-Line) Sight |
Yes |
| Tripod-Mountable Configuration |
Yes |
| User Profiles (Configurable) |
Yes: 8 |
| Automatic/Manual Pixel Masking |
Yes |
| Reset to Factory Defaults |
Yes |
| External Video Feed Protection |
Yes |
| Automatic Power Down Control |
User-Configurable: 10 .. 60 minutes of inactivity |
| Accepted Batteries |
2 (two) CR123 of Any Type: Lithium / Rechargeable |
| Universal Port |
Video-Out, Remote Control and External Power (4VDC .. 15VDC) |
| Battery Life on 2x CR123 |
Up to 7 Hours |
| Environmental Protection |
Fully Waterproof |
| Dimensions |
195 x 66 x 66 mm |
| Weight |
525 grams |
| Operating Temperature |
-40°C .. +50°C |
| Warranty |
7 Years, Limited |
| Made In Canada |
ITAR-Free |
