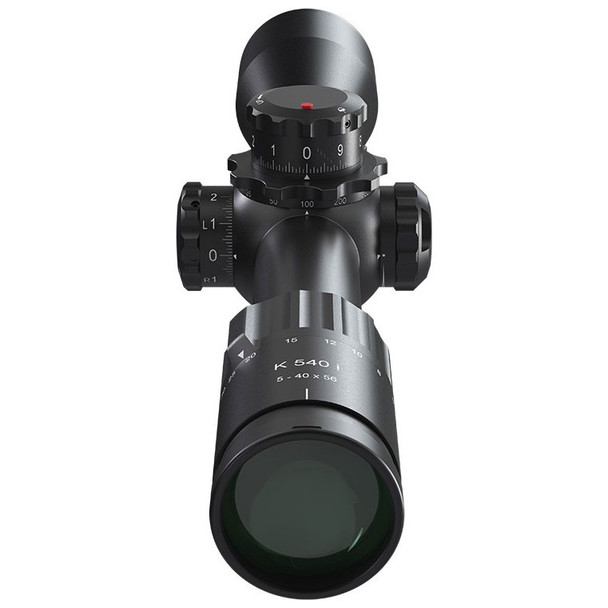

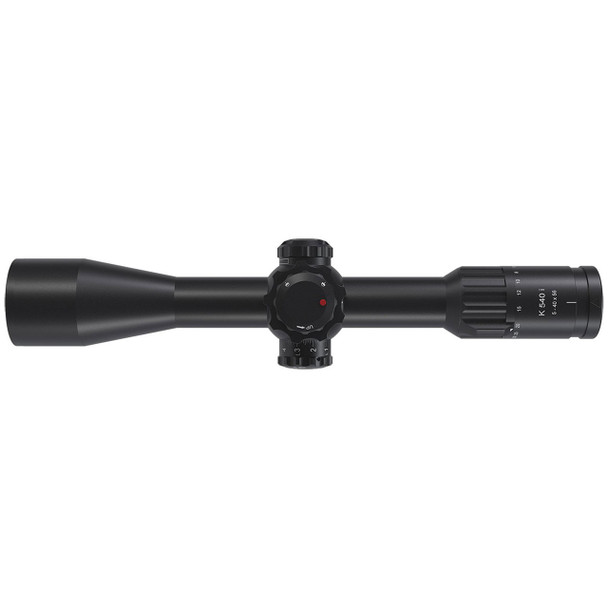

KAHLES K540i REFINED (LSW) 5-40x56 FFP Riflescope: 36mm Tube, CCW, SKMR4+ Reticle, Model 10950

UNPARALLELED PERFORMANCE.

Designed for professional long-range shooting, the K540i sets a bold new standard. Its unparalleled field of view provides maximum downrange clarity and enables seamless target transition, essential in fast-paced scenarios.

REFINED Introduces

• 10 MIL Windage – increased usability in dynamic environments

PRODUCT HIGHLIGHTS

• Ergonomic, shooter-specific configurations for optimal control.
• True 8x zoom with uncompromised optical performance across the entire adjustment range.
• VISIONFLEX – Revolutionary optical design with a 40% wider field of view* and a remarkably generous eyebox.

FEATURES

• First Focal Plane
  Where riflescopes have reticles in the first focal plane, the size of the reticle remains proportional to the target and adjusts with the magnification. This allows for precise aiming points and reliable distance measurement, regardless of the chosen magnification.


• Illuminated Reticle
  Illuminated, fine-structured reticle for precise aiming and optimal visibility.


• Main Tube Diameter 36 mm
  The main tube has a diameter of 36 mm.


• 10MIL per Revolution Turrets
  The elevation and windage adjustments with 100 clicks per full revolution allow for fast and precise adjustments under demanding conditions. Enlarged click intervals and clear EASYREAD labelling ensure excellent tactile feedback and secure operation.


• Adjustment Direction CCW
  The adjustment direction of the elevation and windage turrets is designed to be counter-clockwise (ccw).


• Top Mounted Parallax
  The top mounted parallax adjustment sits below the elevation turret. The patented central arrangement allows for simple and intuitive operation of all controls with the preferred hand, without needing to reach over.


• Windage Left or Right
  Models featuring parallax adjustment integrated into the elevation turret offer ergonomic and intuitive access to all controls. This innovative design allows the windage adjustment to be positioned on either side of the turret housing – left for right-handed shooters and right for left-handed shooters. Thus adjustments can be made without ever leaving the shooting position.


• EASYREAD
  Adjustment turrets with EASYREAD labelling provide excellent readability and clear identification under challenging conditions.


• REVOLUTION INDICATOR
  The REVOLUTION INDICATOR (mechanical) uses the Indicator Pin as a reference: depending on its position, it continuously displays the current revolution level, ensuring a reliable and instantly recognizable position indication.


• INDEXSTOP
  The INDEXSTOP (mechanical stop) is positioned 2–3 clicks below the zero indicator and is set after sighting in, allowing a quick and repeatable return to zero.


• TWISTGUARD
  The patented anti-rotation mechanism of the windage turret prevents unintentional adjustments by means of a freely rotating protective cap – without additional locking mechanisms, it is immediately ready for use.


• VISIONFLEX
  VISIONFLEX creates an exceptionally wide field of view and opens a remarkably generous eyebox, delivering a natural, fatigue-free viewing experience that remains consistent across all magnifications.
