KIDD .22 Bead Blasted Black 10" Pistol Barrel Threaded | KIDD-22BRL-CM-10-BB-TC

Give your 10/22® Charger™ the KIDD advantage — bead blasted blued chromoly construction, precision machining, extraction reliability, and muzzle-threading ready for accessories.

Upgrade your Ruger® 10/22® Charger™ with a bead blasted blued chromoly pistol bull barrel that pairs show-quality finish with match-grade function.

What makes it special

• Pistol bull in a compact package: Full .920" bull contour scaled to 10"—gives the Charger™ the stiffness and sighting feel of a bull barrel without a rifle-length profile.
• Match-grade build: Bored & rifled by Lothar Walther (Germany), finished and final-machined by Tony Kidd, then chambered with a proprietary reamer for smooth, reliable feeding.
• Extraction reliability: Precision convex extractor slot keeps the extractor perfectly aligned with the case rim — a tight-tolerance feature that prevents common extraction problems.

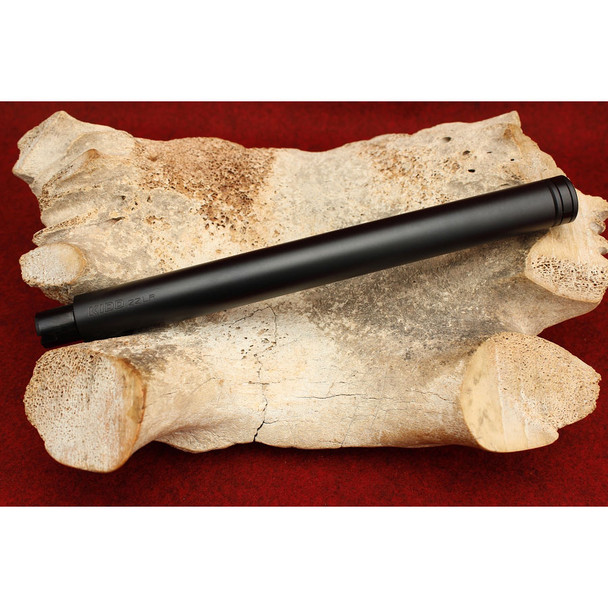

• Accessory-ready: Muzzle threading 1/2"-28 (protective cap included) for muzzle devices or suppressors.
• Improved harmonics & repeatability: Controlled tenon geometry and finish machining reduce unwanted movement and improve repeatable accuracy for tighter groups.

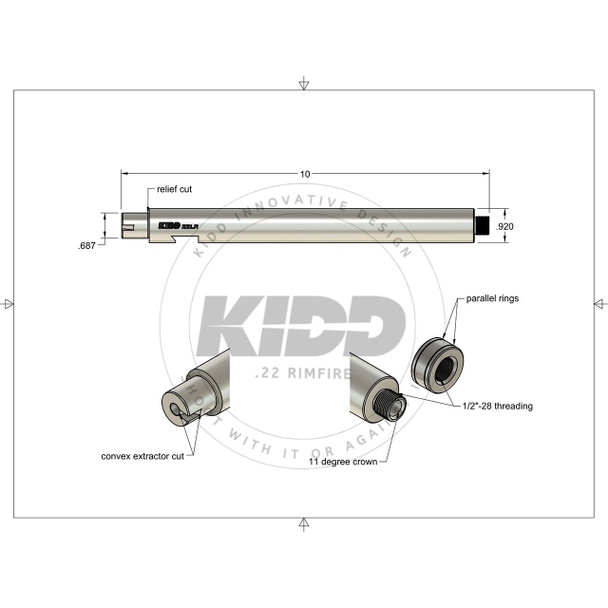

Key specs

• Fit: Designed for Ruger® 10/22® Charger™ and compatible pistol receivers
• Length: 10"
• Barrel diameter: .920" bull profile
• Material & finish: Bead Blasted blued chromoly
• Twist: 1:16 (optimized for .22 LR)

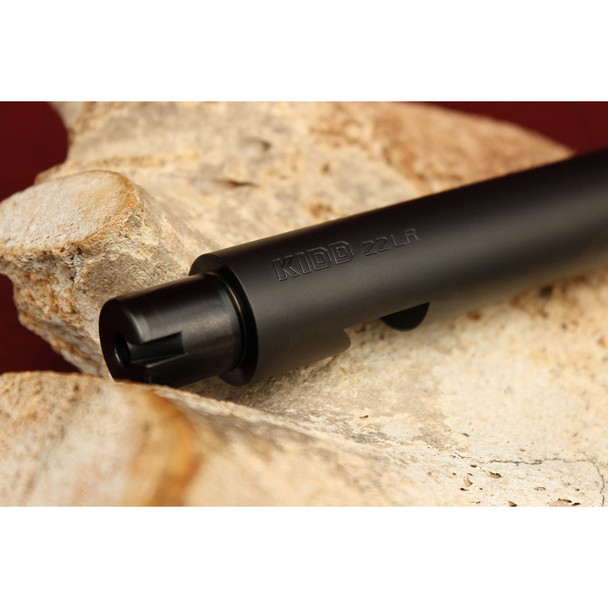

• Crown: 11° crown + double ring; KIDD marked
• Extractor slot: Convex precision-machined design

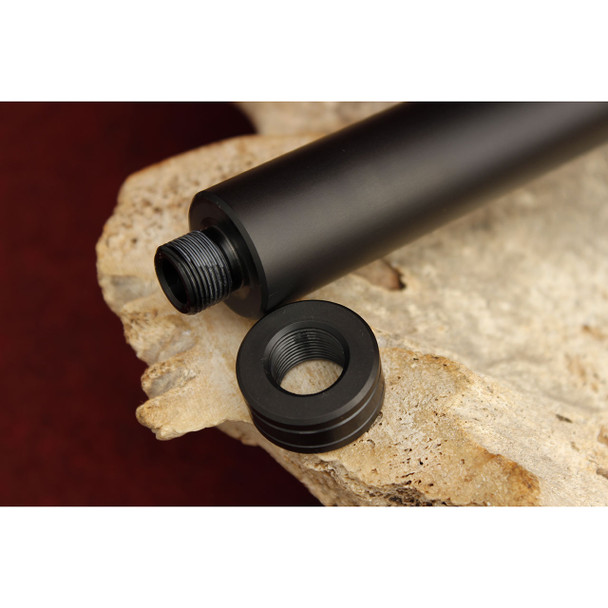

• Muzzle threading: 1/2"-28 (protective cap included)

Barrel weight

• 10" bead blasted blued chromoly pistol bull — 2 lb 1 oz

Fitment & avoiding barrel droop

Barrel droop is caused by an insecure or inconsistent tenon/shoulder fit. We eliminate droop with:

• A precise fit between tenon and receiver, with a consistent diameter along the tenon length.
• A precisely machined shoulder with a relief cut to allow the shoulder to seat flush against the receiver providing full support.

When properly fitted, v-block screws only need to be snug (~10 in-lb) — tight enough to prevent forward movement without distorting alignment.

Installation tips

• If using another brand of receiver clean paint/build-up from the receiver mortise before installing.
• Apply a light coat of grease to the tenon to ease installation—use sparingly.
• Begin inserting the tenon while aligning the extractor slot. Tap the rear of the receiver with your palm; if resistance increases, use a rubber mallet to fully seat.
• Recheck extractor alignment by matching the level of the receiver’s bottom flat with the barrel’s v-block cutout.
• Run two magazines through the barrel before evaluating groups, and repeat when changing ammunition brands.
• Keep the chamber clean but avoid over-cleaning the bore—excessive cleaning can reduce accuracy. Typical bore cleaning interval~ every 500 rounds, depending on ammo
