KIDD Auto Bolt Release for 10/22

• Upgrade your 10/22® bolt hold open (B-41) to an auto bolt release
• Rack the bolt with a simple pull
• No gunsmith required for installation
• Manufactured from laser cut stainless steel laser

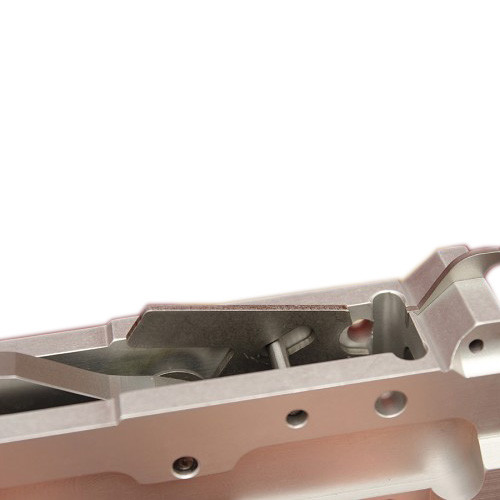

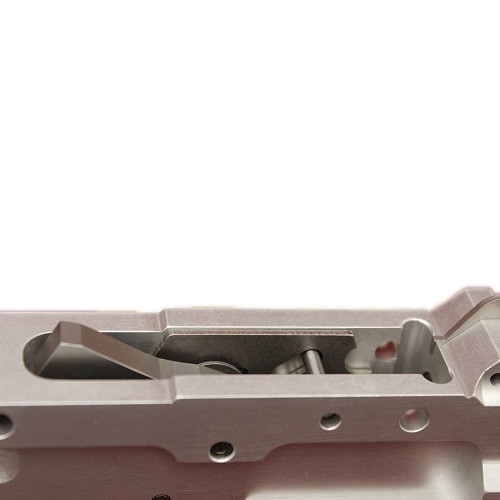

The KIDD Auto Bolt Release will replace your factory bolt hold open (part #B-41) in the 10/22® trigger. This upgrade will allow the shooter to simply pull back on the bolt handle when the bolt is locked back to allow the bolt to go forward. No more fiddling with the factory bolt hold open to allow the bolt to go forward.

- All KIDD complete trigger units come with the auto bolt release as standard, but this product can be used to upgrade your current factory trigger.

Replacement instructions:

With the trigger unit removed from the receiver push the (B-35) ejector pin and (B-35) magazine release latch pin 1/3 of the way out starting from the bolt hold open (B-41) side of the trigger. Pull out the current bolt hold open then slide in the KIDD Auto Bolt Release. Fully install the magazine release latch pin back in. Locate the bent arm of the spring in the ABR notch, fully install the top ejector pin. Check if the ABR functions properly by actuating the ABR and making sure that it springs back into place.

Package includes:

• Auto Bolt Release
