Leupold

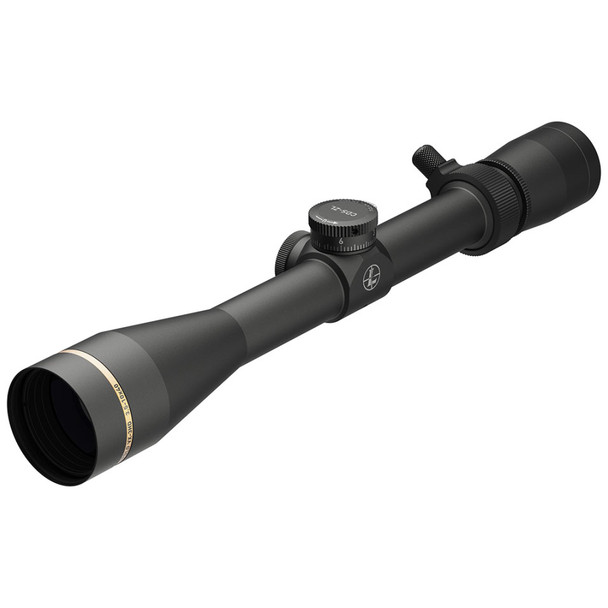

Leupold VX-3HD 3.5-10x40 SFP Riflescope: 1" Tube, CDS-ZL, Duplex Reticle, Model 180617

(1 review) Write a Review
SKU:
ISS7917
UPC:
030317028350
MPN:
180617
  • Leupold VX-3HD 3.5-10x40 SFP Riflescope: 1" Tube, CDS-ZL, Duplex Reticle, Model 180617
  • Leupold VX-3HD 3.5-10x40 SFP Riflescope: 1" Tube, CDS-ZL, Duplex Reticle, Model 180617
  • Leupold VX-3HD 3.5-10x40 SFP Riflescope: 1" Tube, CDS-ZL, Duplex Reticle, Model 180617
  • Leupold VX-3HD 3.5-10x40 SFP Riflescope: 1" Tube, CDS-ZL, Duplex Reticle, Model 180617
  • Leupold VX-3HD 3.5-10x40 SFP Riflescope: 1" Tube, CDS-ZL, Duplex Reticle, Model 180617
  • Duplex® Reticle


Invented in 1962 by Leupold®

Defined by heavy posts

Stands out against cover in low light

Quick target acquisition with thin lines at the center

Most popular reticle in the world

Rear (second) focal plane
Our Price: $812.00

Description

The VX®-3HD 3.5-10x40mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. Its versatile magnification can get the job done in almost any scenario.

The VX-3HD delivers outstanding performance in low light. With Leupold’s Elite Optical System, the VX-3HD delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS® ZeroLock® dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It’s that simple.

Everything we put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

  • 3:1 Zoom Ratio
    A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.

  • Custom Dial System
    Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

  • Zero Lock Dial
    The ZeroLock® system eliminates accidental dial movement by locking it in place.

  • High Definition
    High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.

  • Scratch Resistant Lenses
    Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.

  • Elite Optical System
    Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.

  • Lockable Eyepiece
    A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.

  • Removeable Throw Lever
    The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.

  • Waterproof, Fogproof, & Shockproof
    Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.



Duplex® Reticle

  • Invented in 1962 by Leupold®
  • Defined by heavy posts
  • Stands out against cover in low light
  • Quick target acquisition with thin lines at the center
  • Most popular reticle in the world
  • Rear (second) focal plane



SKU ISS7917
MPN 180617



Badge New
Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS-ZL
Locking Dial Yes
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type Finger Click
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Second Focal Plane
Reticle Duplex
Magnification Type Variable
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 13.1
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 55
Elevation Adjustment Range (MIL) 16
Elevation Adjustment Range (cm @ 100m) 160
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 55
Windage Adjustment Range (MIL) 16
Windage Adjustment Range (cm @ 100m) 160
Windage Adjustment Per Revolution 15 MOA
Magnification Max 10
Magnification Min 3.5
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 29
Linear FOV High Mag (ft@100yds) 11
Angular FOV Low Mag (Degrees) 5.5
Angular FOV High Mag (Degrees) 2.1
Eye Relief Low Mag (in) 4.4
Eye Relief High Mag (in) 3.6
Fixed Parallax-Free Distance (yd) 150



View AllClose

Additional Information

Product:
Riflescope
Series:
VX-3HD
Magnification:
3.5 - 10x
Objective Lens Diameter:
40 mm
Tube Diameter:
1 in
Focal Plane:
SFP
View AllClose

1 Review

  • 5

    Leupold

    Posted by Gerry on 2024 Nov 4th

    One of the best out there. CDS system is nice
