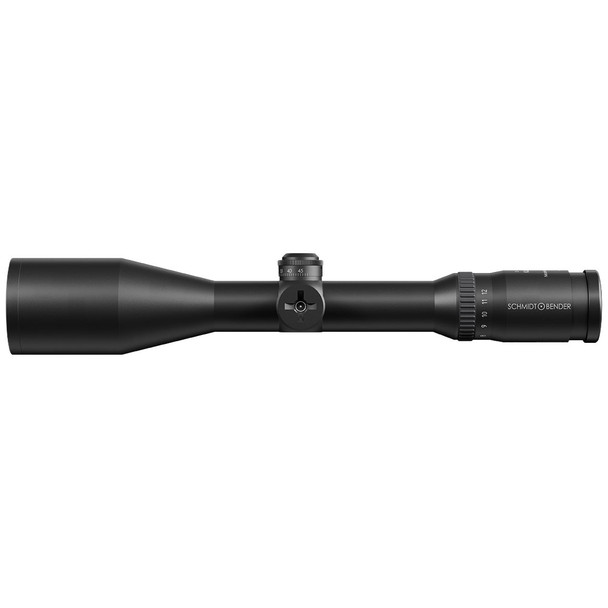

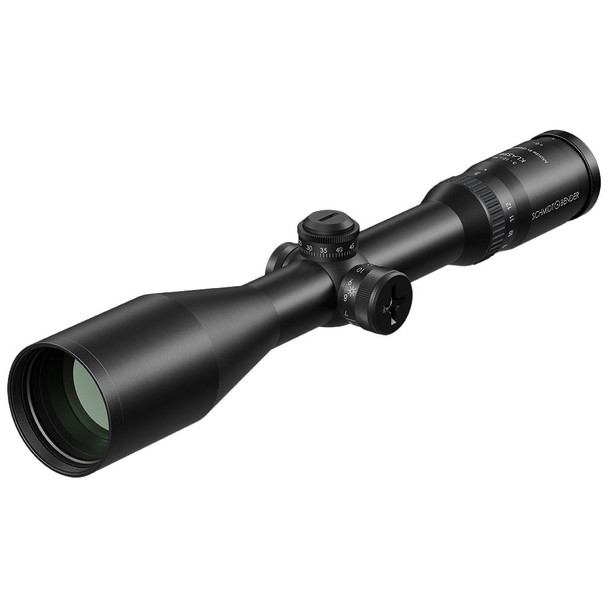

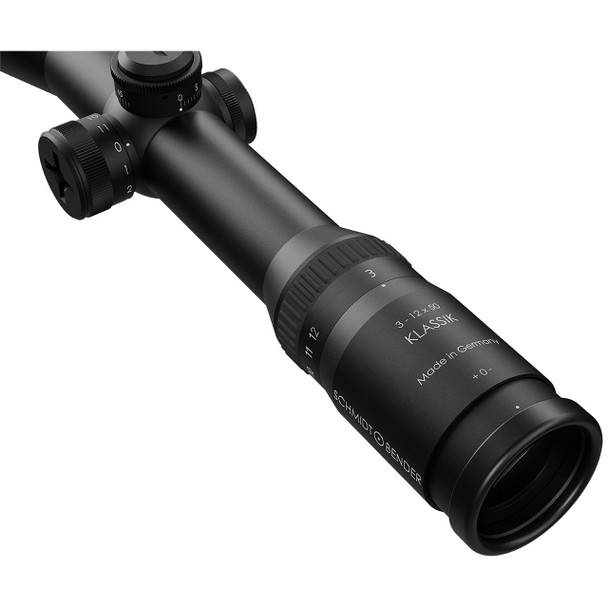

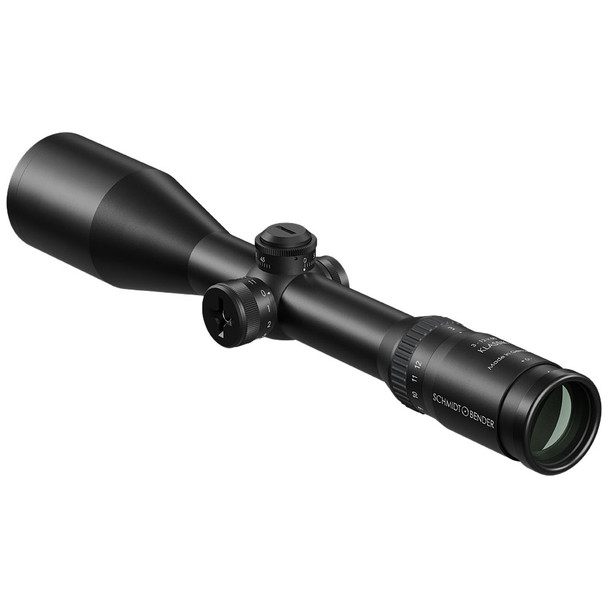

Schmidt & Bender Klassik LM 3-12x50 FFP Riflescope: 30mm Tube, L3 Reticle, ASV / Klassik CT (1 cm) / CW Turret | 644-811-482-40-05A02

The 3-12x50 Klassik combines rugged construction with high precision. Its design is identical to the legendary 3-12x50 PM II riflescope and offers the same optical quality.

• Turret Configuration: ASV / Klassik CT (1 cm)
• Turret Rotation: Clockwise (cw)
• Reticle: L3

LEGENDARY OPTICS FOR HUNTING SUCCESS

The 3-12x50 Klassik combines rugged construction with high precision. Its design is identical to the legendary 3-12x50 PM II riflescope and offers the same optical quality. The slim yet stable build enables low mounting on the rifle, which enhances handling and provides an optimal mount. A 50 mm objective diameter and high light transmission deliver clear and bright target recognition even in twilight. With its 4x magnification, the 3-12x50 Klassik can be relied on for both Stalking and hide hunting.

TECHNICAL DATA

1. Length @ 0 dpt (mm | in): 350 | 13.78
2. Main tube diameter (mm | in): 30 | 1.18
3. Mounting system: Ring mount
4. Weight (g | oz): 640 | 22.58
5. Magnification: 3–12
6. Internal objective diameter (mm | in): 50 | 1.97
7. Field-of-view (m/100 m) | (ft/100 yd): 11.09–3.4 | 33.30–10.20
8. Exit pupil diameter (mm | in): 14.4–4.2 | 0.57–0.17
9. Eye relief distance (mm | in): 90 | 3.54
10. Transmission (%): 90
11. Focal Plane: 1
12. Diopter adjustment (dpt): –3 to +2
13. Parallax adjustment (m | yd): 100 | 109.36
14. Illumination steps: 11
15. Temperature – Function (°C | °F): –25 to +63 | –13 to +142
16. Outer diameter objective (mm | in): 57 | 2.24
17. Outer diameter ocular (mm | in): 43.1 | 1.70
18. Waterproof (m | ft): 3 | 9.84
19. Click value: 1 cm/100 m
20. Adjustment range elevation: 48 cm/100 m

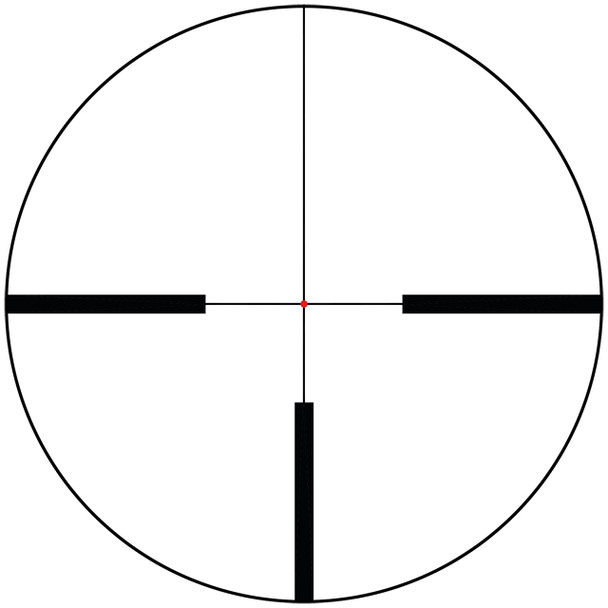

RETICLE

1. Illumination color: red

TURRET CONFIGURATION

1. Turret Configuration: ASV / Klassik CT (1 cm)
2. Turret rotation: clockwise (cw)
