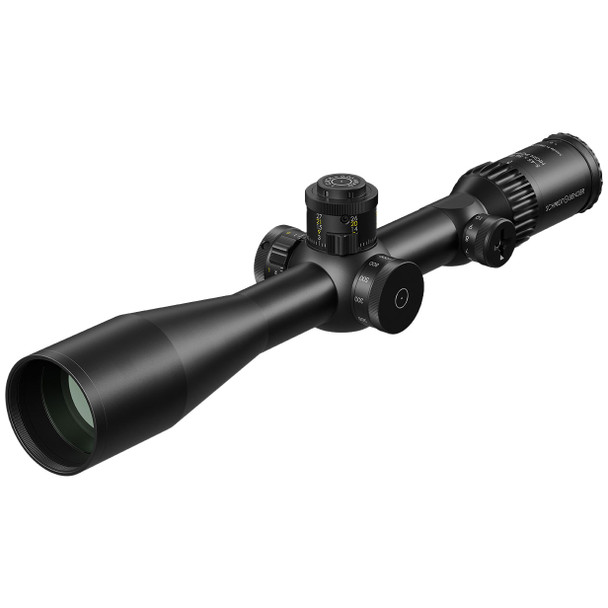

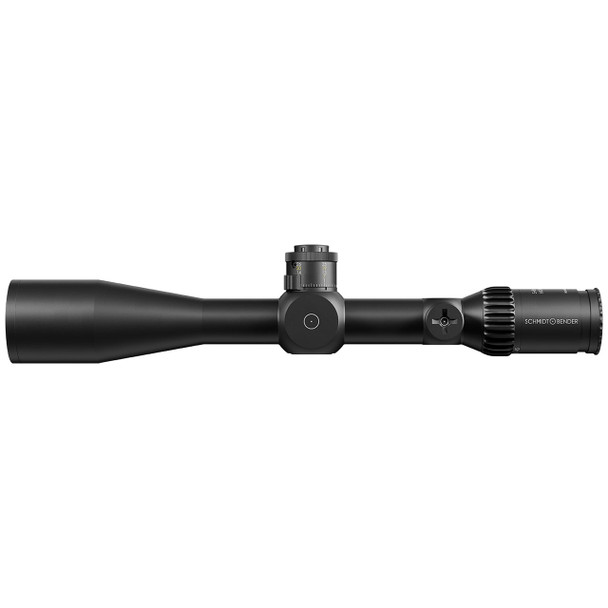

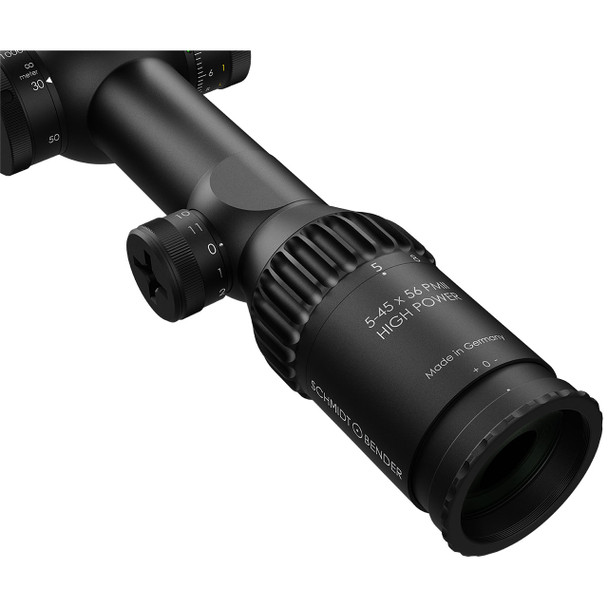

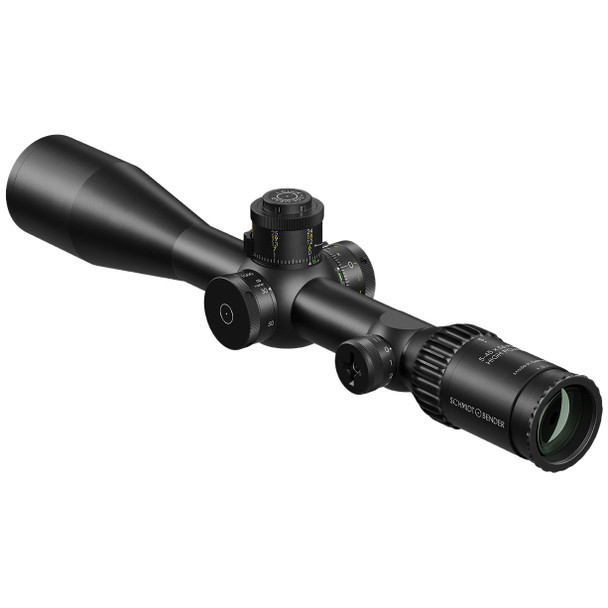

Schmidt & Bender PM II High Power LP 5-45x56 FFP Riflescope: 34mm Tube, LRR-MIL Reticle, MT II MTC LT / DT II+ ZC LT (0.05 mrad) / CCW Turret | 666-911-41C-I1-H5

The 5-45x56 PM II High Power combines the capabilities of a sniper riflescope with the observational performance of a spotting scope.

• Turret Configuration: MT II MTC LT / DT II+ ZC LT (0.05 mrad)
• Turret Rotation: Counterclockwise (ccw)
• Reticle: LRR-MIL

THE COMBINATION OF RIFLESCOPE AND SPOTTING SCOPE

The 5-45x56 PM II High Power combines a sniper scope and spotting scope in one.

In addition to special police units for airfield security, it is also used by the military in the Netherlands and other countries.

The large 9x zoom factor and the associated magnification range of 5-45x mean that the riflescope can be used for precise observation and target identification in addition to accurate shooting. In addition to the outstanding resolution, it has a large field of view, which allows a good overview during use despite the large magnification range. It features the high-quality mechanical workmanship and robust construction typical of Schmidt & Bender.

The enormous magnification range makes it suitable for use from medium distances up to observation missions.

TECHNICAL DATA

1. Length @ 0 dpt (mm | in): 434 | 17.09
2. Main tube diameter (mm | in): 34 | 1.34
3. Mounting system: Ring mount
4. Weight (g | oz): 1,190 | 41.98
5. Magnification: 5–45
6. Internal objective diameter (mm | in): 56 | 2.20
7. Field-of-view (m/100 m) | (ft/100 yd): 7.8–0.86 | 23.40–2.58
8. Exit pupil diameter (mm | in): 8.8–1.2 | 0.35–0.05
9. Eye relief distance (mm | in): 90 | 3.54
10. Transmission (%): 90
11. Focal Plane: 1
12. Diopter adjustment (dpt): –3 to +2
13. Parallax adjustment (m | yd): 30 – ∞ | 32.81 – ∞
14. Illumination steps: 11
15. Temperature – Function (°C | °F): –46 to +63 | –51 to +142
16. Outer diameter objective (mm | in): 62 | 2.44
17. Outer diameter ocular (mm | in): 50 | 1.97
18. Waterproof (m | ft): 3 | 9.84
19. Click value: 0.05 mrad
20. Adjustment range elevation: 29.5 mrad

RETICLE

1. Illumination color: Red

TURRET CONFIGURATION

1. Lateral adjustment range: 153
2. Turret Configuration: MT II MTC LT / DT II+ ZC LT (0.05 mrad)
3. Turret rotation: counterclockwise (ccw)
