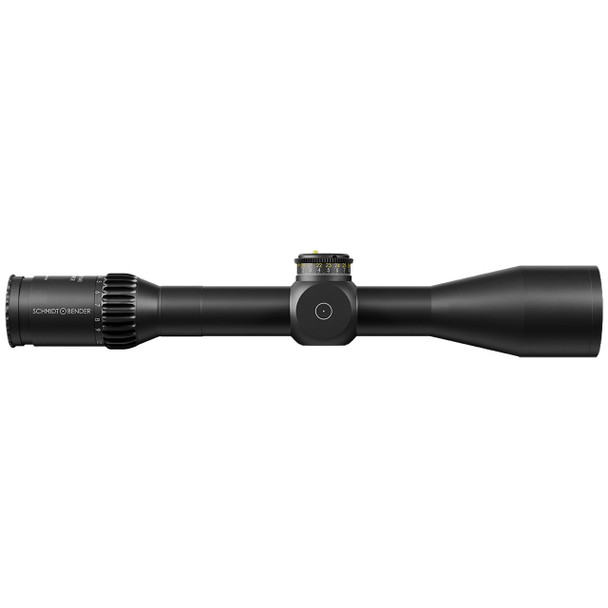

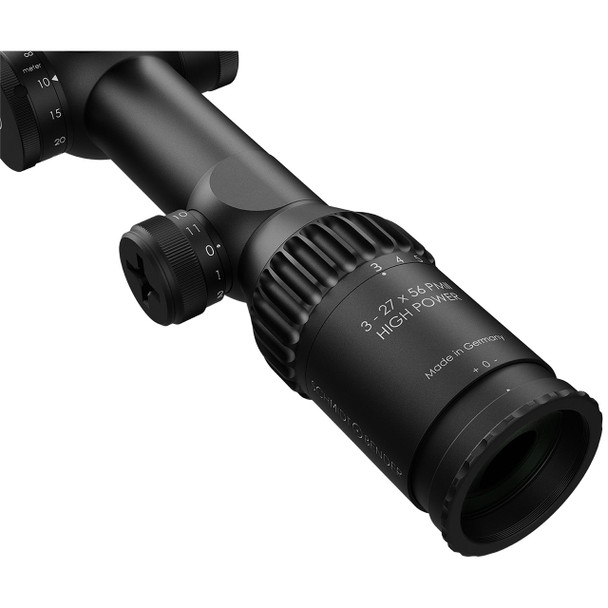

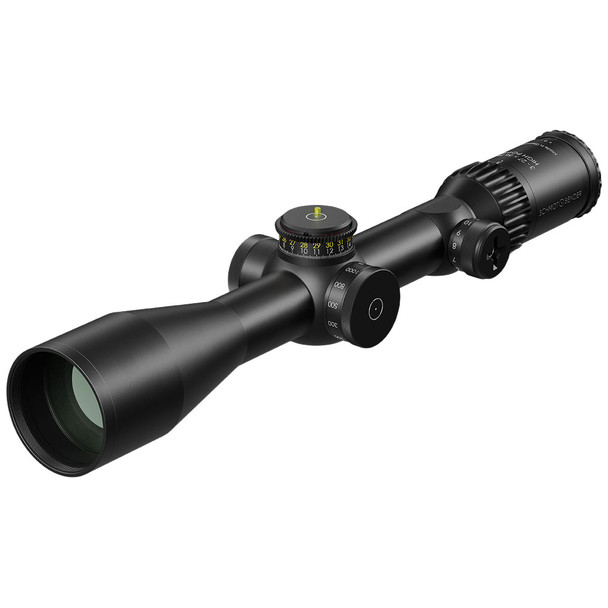

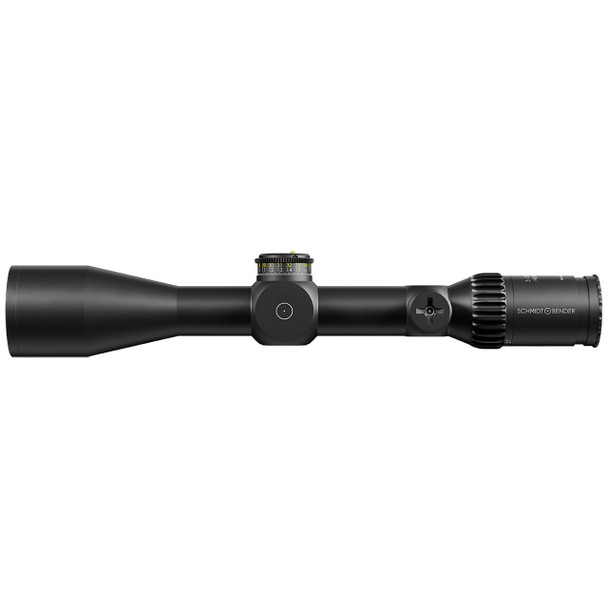

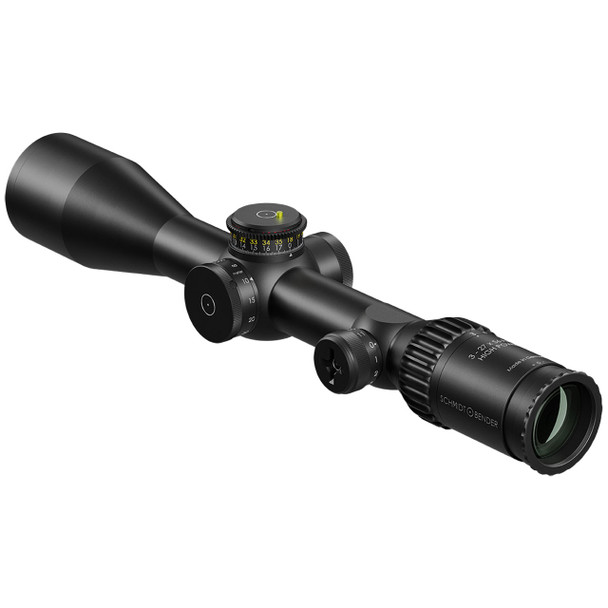

Schmidt & Bender PM II High Power LP 3-27x56 FFP Riflescope: 34mm Tube, MSR2 Reticle, DT35 MTC LT / ST ZC CT (0.1 mrad) / CW Turret | 669-911-532-F2-E9

The 3-27x56 PM II High Power is an extremely versatile riflescope originally developed for the USSOCOM “ELR Program,” which it won in 2012. Since then, it has become a preferred optic for medium to extreme engagement distances.

• Turret Configuration: DT35 MTC LT / ST ZC CT (0.1 mrad)
• Turret Rotation: Clockwise (cw)
• Reticle: TREMOR3

MAXIMUM OPERATIONAL FLEXIBILITY

The 3-27x56 PM II High Power is an extremely versatile riflescope originally developed for the USSOCOM “ELR Program,” which it won in 2012. Since then, it has become a preferred optic for medium to extreme engagement distances. Its wide magnification range makes it highly effective on multi-caliber platforms, and it is used by additional NATO partners as well as police and special units.

The 9× zoom provides a broad operational spectrum, supported by a very large field of view and a generous exit pupil. High transmission and excellent resolution ensure reliable detection and identification at long ranges. With more than 40 mrad of internal elevation adjustment, it offers the necessary reserves for extreme-distance shooting.

TECHNICAL DATA

1. Length @ 0 dpt (mm | in): 398 | 15.67
2. Main tube diameter (mm | in): 34 | 1.34
3. Mounting system: Ring mount
4. Weight (g | oz): 1,100 | 38.80
5. Magnification: 3–27
6. Internal objective diameter (mm | in): 56 | 2.20
7. Field-of-view (m/100 m) | (ft/100 yd): 12.98–1.4 | 39.00–4.20
8. Exit pupil diameter (mm | in): 8.7–2.1 | 0.34–0.08
9. Eye relief distance (mm | in): 90 | 3.54
10. Transmission (%): 90
11. Focal Plane: 1
12. Diopter adjustment (dpt): –3 to +2
13. Parallax adjustment (m | yd): 10 – ∞ | 10.94 – ∞
14. Illumination steps: 11
15. Temperature – Function (°C | °F): –46 to +63 | –51 to +142
16. Outer diameter objective (mm | in): 62 | 2.44
17. Outer diameter ocular (mm | in): 50 | 1.97
18. Waterproof (m | ft): 3 | 9.84
19. Click value: 0.1 mrad
20. Adjustment range elevation: 35 mrad

RETICLE

1. Illumination color: Red

TURRET CONFIGURATION

1. Lateral adjustment range: 213
2. Turret Configuration: DT35 MTC LT / ST ZC CT (0.1 mrad)
3. Turret rotation: clockwise (cw)
