KIDD .22 Bead Blasted Stainless Steel 10" Pistol Barrel Threaded | KIDD-22BRL-SS-10-BB-TC

Give your 10/22® Charger™ match-grade accuracy and showroom finish in a compact, bead blasted-stainless package — precision machining, a hardened German-rifled bore, muzzle threading ready for accessories, and the fit control you need to tighten groups.

Upgrade your Ruger® 10/22® Charger™ with a bead blasted stainless pistol bull barrel that brings match-grade accuracy to a compact platform.

What makes it special

• Pistol bull in a compact length: Full .920" bull profile scaled to a 10" length for the Charger™ — delivers the stiffness and sighting feel of a bull barrel in a pistol package.
• Match-grade components: Bored & rifled by Lothar Walther (Germany) and finished by Tony Kidd, with a proprietary chamber reamer for smooth, reliable feeding.

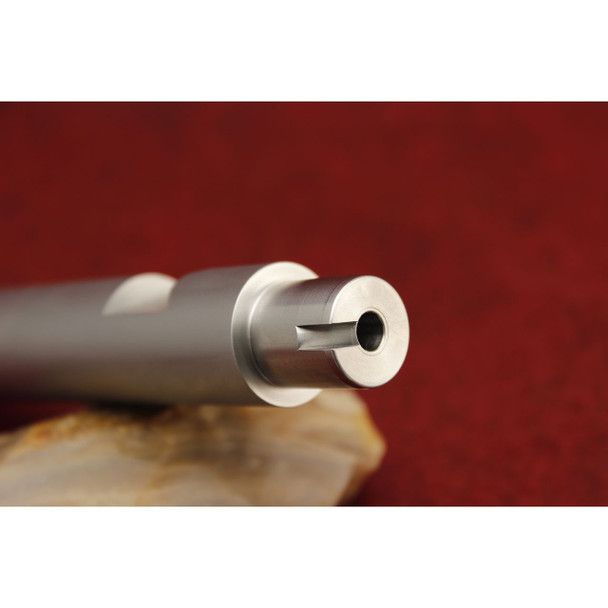

• Extractor reliability: Precision convex extractor slot keeps the extractor perfectly aligned with the case rim to eliminate common extraction issues.
• Premium finish: Bead Blasted stainless steel for corrosion resistance and show-quality appearance.
• Compact accuracy: Engineered and tested to tighten groups through improved harmonics and repeatable fit.

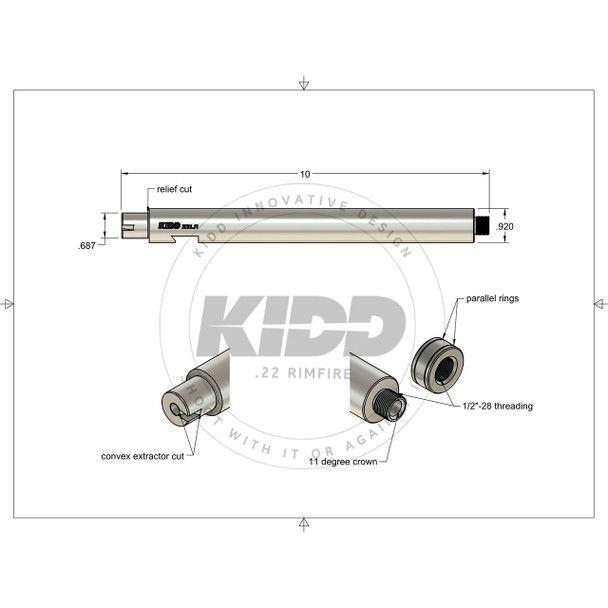

Key specs

• Fit: Designed for Ruger® 10/22® Charger™ and compatible pistol receivers
• Length: 10"
• Barrel diameter: .920" bull profile
• Material / finish: Bead Blasted stainless steel
• Twist: 1:16 (optimized for .22 LR)
• Crown: 11° crown + double ring; KIDD marked
• Extractor slot: Convex precision-machined for consistent extraction

Barrel weight

• 10" polished stainless pistol bull — 2 lb 1 oz

Fitment & avoiding barrel droop

Barrel droop is caused by an insecure or inconsistent tenon/shoulder fit. We eliminate droop with:

• A precise fit between tenon and receiver, with a consistent diameter along the tenon length.
• A precisely machined shoulder with a relief cut to allow the shoulder to seat flush against the receiver providing full support.

When properly fitted, v-block screws only need to be snug (~10 in-lb) — tight enough to prevent forward movement without distorting alignment.

Installation tips

• If using another brand of receiver clean paint/build-up from the receiver mortise before installing.
• Apply a light coat of grease to the tenon to ease installation—use sparingly.
• Begin inserting the tenon while aligning the extractor slot. Tap the rear of the receiver with your palm; if resistance increases, use a rubber mallet to fully seat.
• Recheck extractor alignment by matching the level of the receiver’s bottom flat with the barrel’s v-block cutout.
• Run two magazines through the barrel before evaluating groups, and repeat when changing ammunition brands.
• Keep the chamber clean but avoid over-cleaning the bore—excessive cleaning can reduce accuracy. Typical bore cleaning interval~ every 500 rounds, depending on ammo
