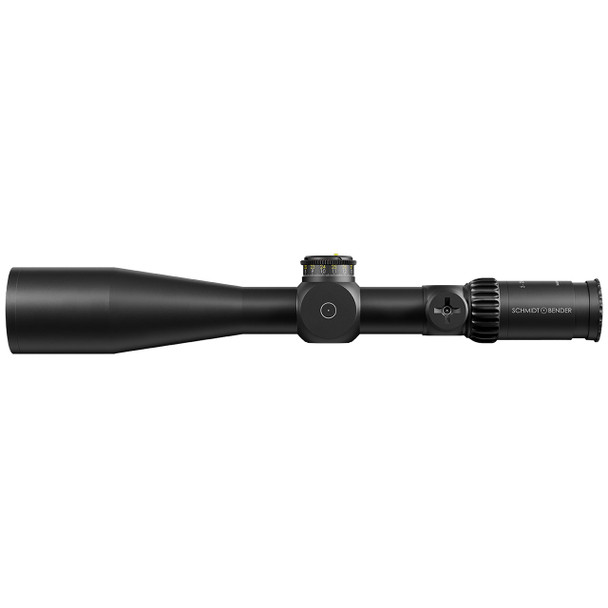

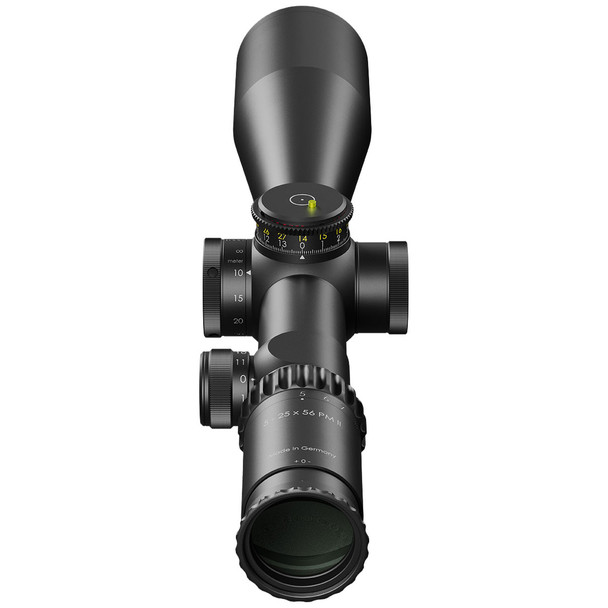

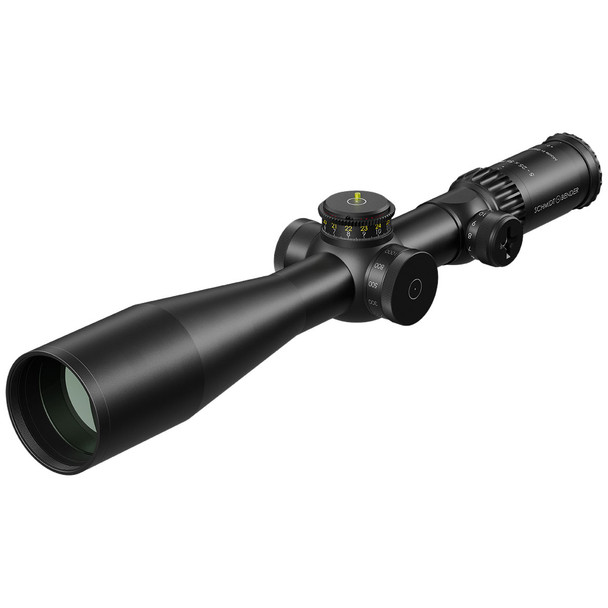

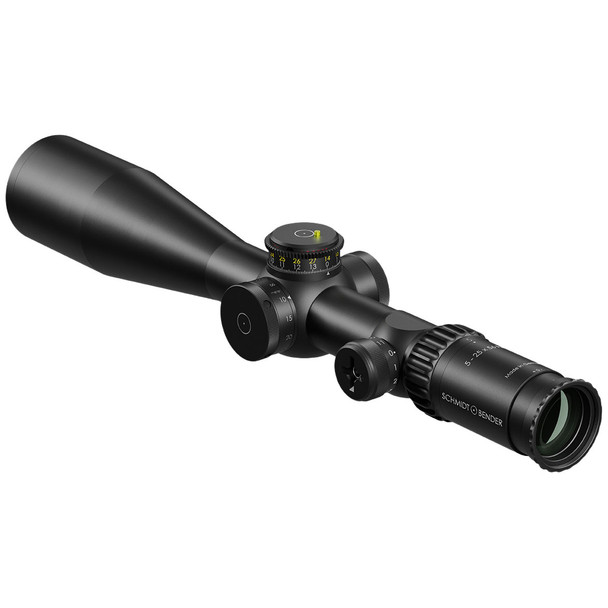

Schmidt & Bender PM II LP 5-25x56 FFP Riflescope: 34mm Tube, P5FL Reticle, DT27 MTC LT / ST ZC CT (0.1 mrad) / CW Turret | 689-911-622-G9-E9

The 5-25x56 PM II remains one of Schmidt & Bender’s most recognized riflescopes and continues to deliver unmatched performance. For more than fifteen years, it has been an integral part of the equipment used by police, military, and special forces units worldwide.

• Turret Configuration: DT27 MTC LT / ST ZC CT (0.1 mrad)
• Turret Rotation: Clockwise (cw)

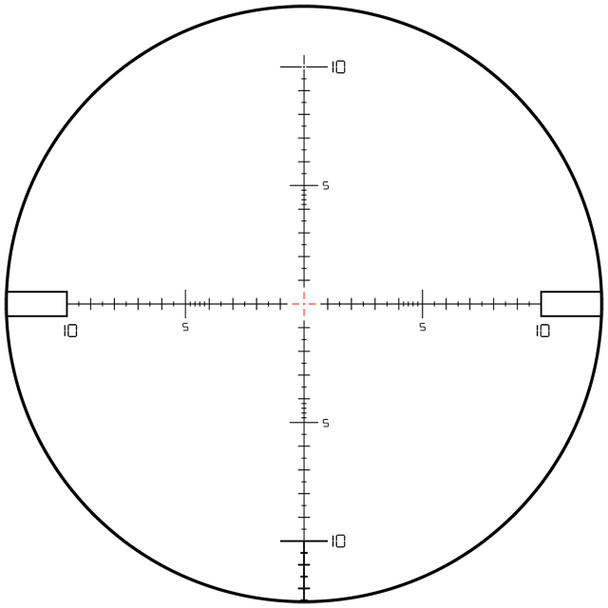

• Reticle: P5FL

THE ICON OF 5-25X56 RIFLESCOPES

Unrivalled to this day – the 5-25x56 PM II is one of Schmidt & Bender's most popular riflescopes.

For more than 15 years, it has been an established part of the equipment of police, military and special units worldwide. In 2011, for example, it won the prestigious USSOCOM ‘Precision Sniper Rifle’ tender. Today, it continues to prevail against its imitators in tenders.

Optically, it has been the gold standard among 5-25x56 scopes for almost two decades now. The parallax can be precisely adjusted from 10 meter. The high-performance design of the 5-25x56 PM II is being continuously developed. The new magnification adjustment is made of high-quality aluminum and is compatible with the ‘Throw Lever’. The metal eyepiece end ring with internal thread is used for attaching accessories, offers easy-grip diopter adjustment and allows the high-quality Tenebraex flip covers to be fitted.

This riflescope allows snipers to use it from medium to extreme distances of several kilometers.

TECHNICAL DATA

1. Length @ 0 dpt (mm | in): 420 | 16.54
2. Main tube diameter (mm | in): 34 | 1.34
3. Mounting system: Ring mount
4. Weight (g | oz): 1,065 | 37.57
5. Magnification: 5–25
6. Internal objective diameter (mm | in): 56 | 2.20
7. Field-of-view (m/100 m) | (ft/100 yd): 5.3–1.5 | 15.90–4.50
8. Exit pupil diameter (mm | in): 11.0–2.3 | 0.43–0.09
9. Eye relief distance (mm | in): 90 | 3.54
10. Transmission (%): 90
11. Focal Plane: 1
12. Diopter adjustment (dpt): –3 to +2
13. Parallax adjustment (m | yd): 10 – ∞ | 10.94 – ∞
14. Illumination steps: 11
15. Temperature – Function (°C | °F): –46 to +63 | –51 to +142
16. Outer diameter objective (mm | in): 62 | 2.44
17. Outer diameter ocular (mm | in): 45.8 | 1.80
18. Waterproof (m | ft): 3 | 9.84
19. Click value: 0.1 mrad
20. Adjustment range elevation: 27 mrad

RETICLE

1. Illumination color: Red

TURRET CONFIGURATION

1. Lateral adjustment range: 155
2. Turret Configuration: DT27 MTC LT / ST ZC CT (0.1 mrad)
3. Turret rotation: clockwise (cw)
