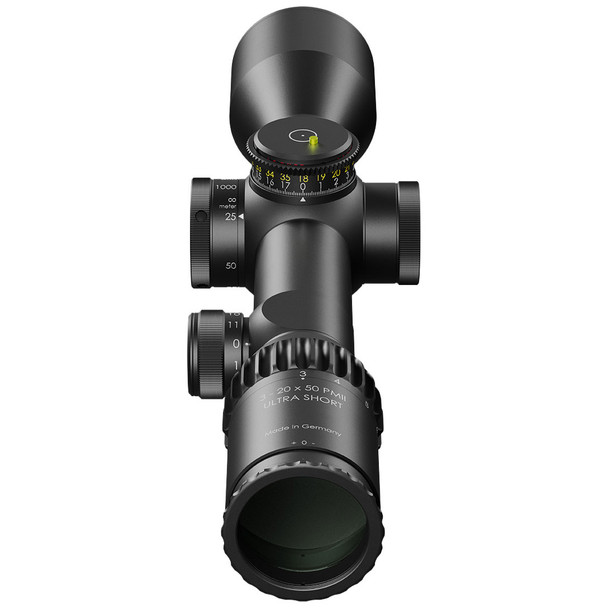

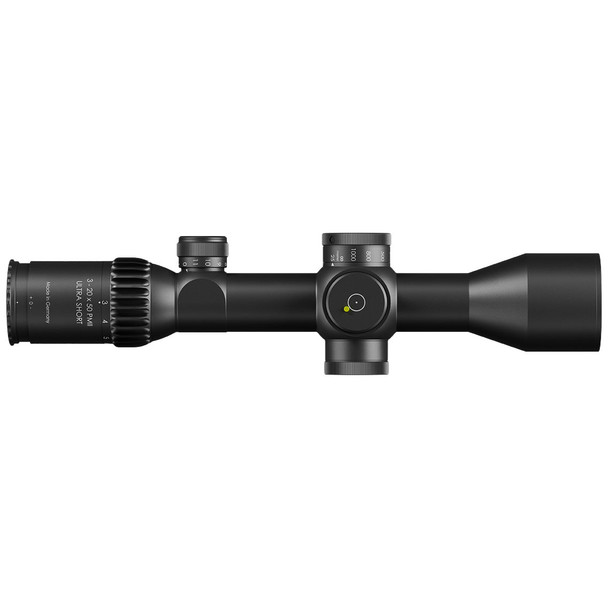

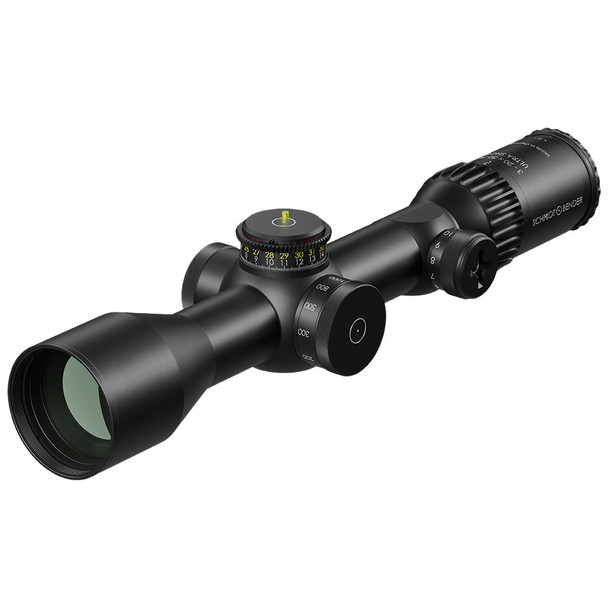

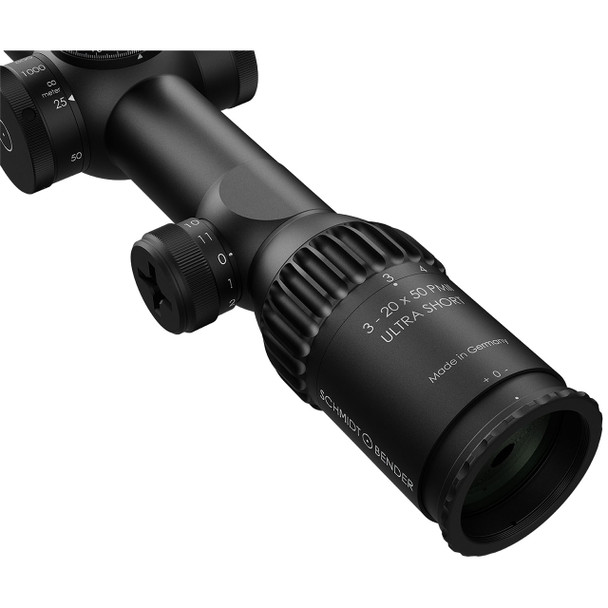

Schmidt & Bender PM II Ultra Short LP 3-20x50 FFP Riflescope: 34mm Tube, TR²ID Reticle, DT35 MTC LT / ST ZC CT (0.1 mrad) / CW Turret | 667-911-432-F2-E9

The 3-20x50 PM II Ultra Short is the logical further development of the 3-20x50 PM II. It offers the largest field of view in its class while being the shortest and lightest riflescope in this performance segment.

• Turret Configuration: DT35 MTC LT / ST ZC CT (0.1 mrad)
• Turret Rotation: Clockwise (cw)

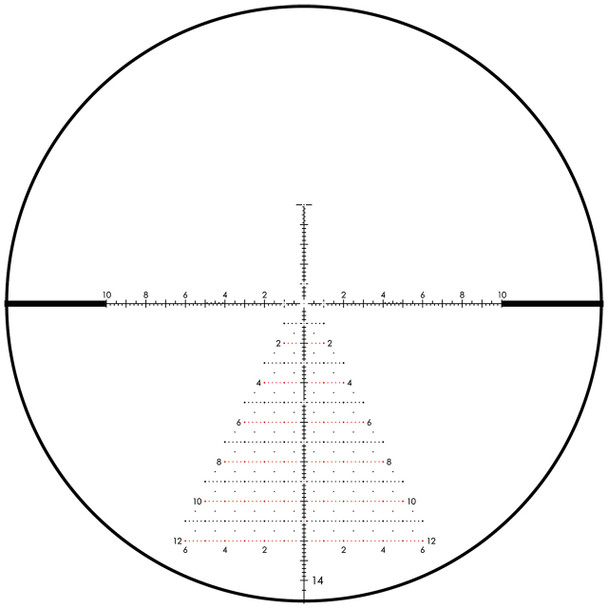

• Reticle: TR²ID

UNBEATEN IN ITS CLASS

The 3-20x50 PM II Ultra Short is the logical further development of the 3-20x50 PM II. It offers the largest field of view in its class while being the shortest and lightest riflescope in this performance segment. With a length comparable to the legendary 3-12x50 PM II, it is the ideal upgrade for DMR systems and sniper platforms.

Its extremely compact design is particularly suited for semi-automatic rifles with short rails in combination with night-vision devices, yet it can also be used on bolt-action rifles up to .50 caliber. The 3-20x50 PM II Ultra Short demonstrated its capability in the US Army’s CSASS program, won jointly with Heckler & Koch. Since then, the Ultra Short has been in service with the US Air Force, as well as Canadian, Spanish, and various police and anti-terror units.

In addition to its exceptionally wide field of view, the Ultra Short offers a large exit pupil, high optical resolution, and excellent transmission. Its robust construction is built for extreme operational conditions, from low temperatures to severe shock loads. In a firing simulator, it successfully withstood more than 30,000 rounds at accelerations of several thousand g.

TECHNICAL DATA

1. Length @ 0 dpt (mm | in): 343 | 13.50
2. Main tube diameter (mm | in): 34 | 1.34
3. Mounting system: Ring mount
4. Weight (g | oz): 920 | 32.45
5. Magnification: 3–20
6. Internal objective diameter (mm | in): 50 | 1.97
7. Field-of-view (m/100 m) | (ft/100 yd): 12.98–2.1 | 39.00–6.30
8. Exit pupil diameter (mm | in): 11.4–2.5 | 0.45–0.10
9. Eye relief distance (mm | in): 90 | 3.54
10. Transmission (%): 90
11. Focal Plane: 1
12. Diopter adjustment (dpt): –3 to +2
13. Parallax adjustment (m | yd): 25 – ∞ | 27.34 – ∞
14. Illumination steps: 11
15. Temperature – Function (°C | °F): –46 to +63 | –51 to +142
16. Outer diameter objective (mm | in): 57 | 2.24
17. Outer diameter ocular (mm | in): 50 | 1.97
18. Waterproof (m | ft): 3 | 9.84
19. Click value: 0.1 mrad
20. Adjustment range elevation: 35 mrad

RETICLE

1. Illumination color: Red

TURRET CONFIGURATION

1. Lateral adjustment range: 219
2. Turret Configuration: DT35 MTC LT / ST ZC CT (0.1 mrad)
3. Turret rotation: clockwise (cw)
